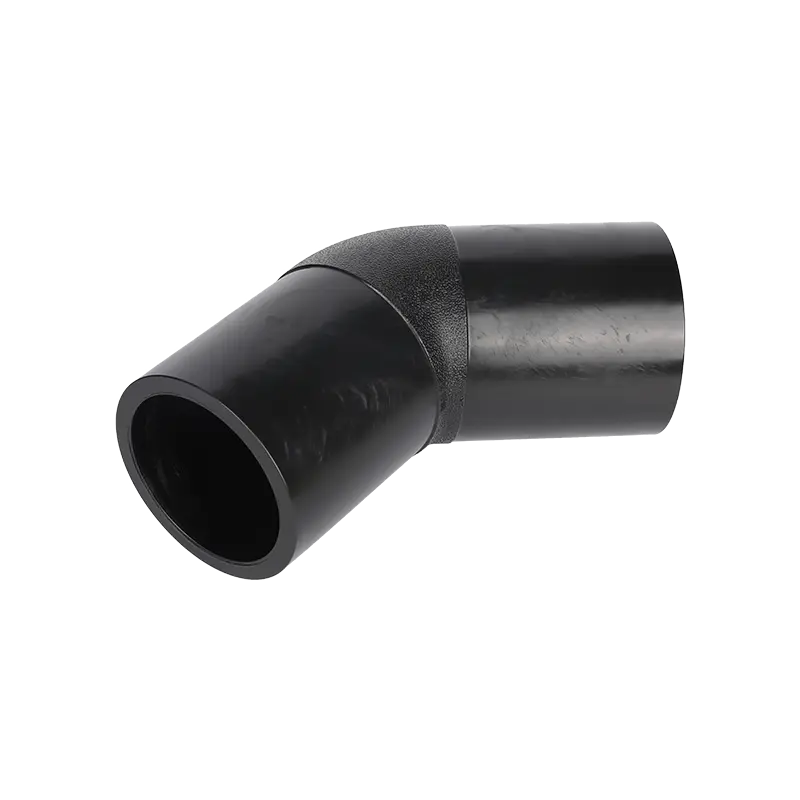

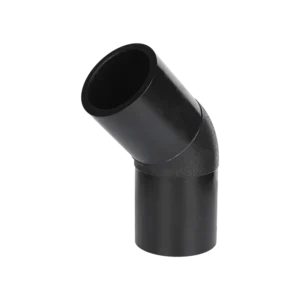

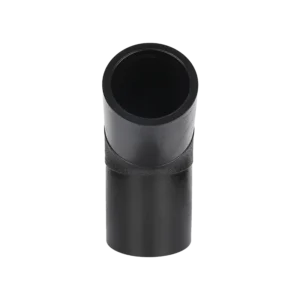

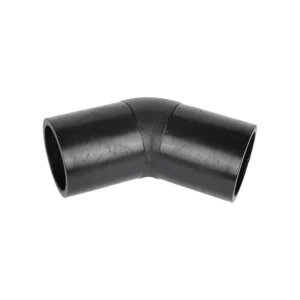

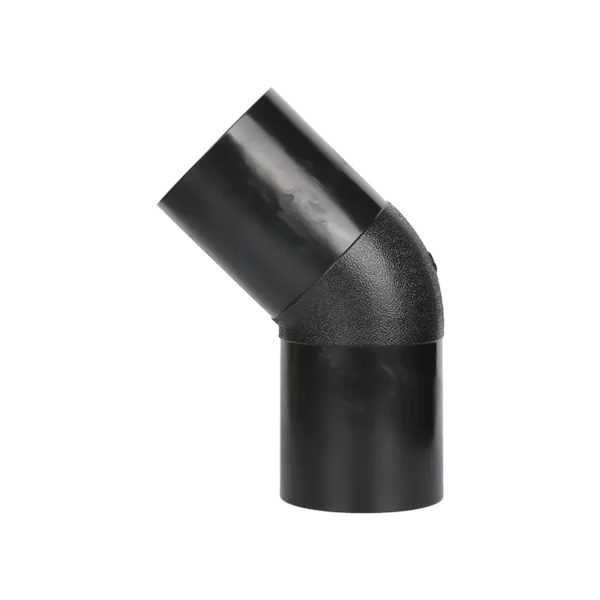

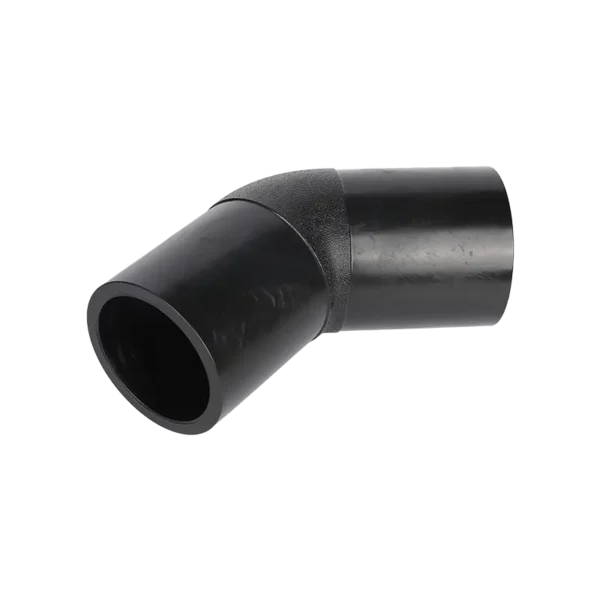

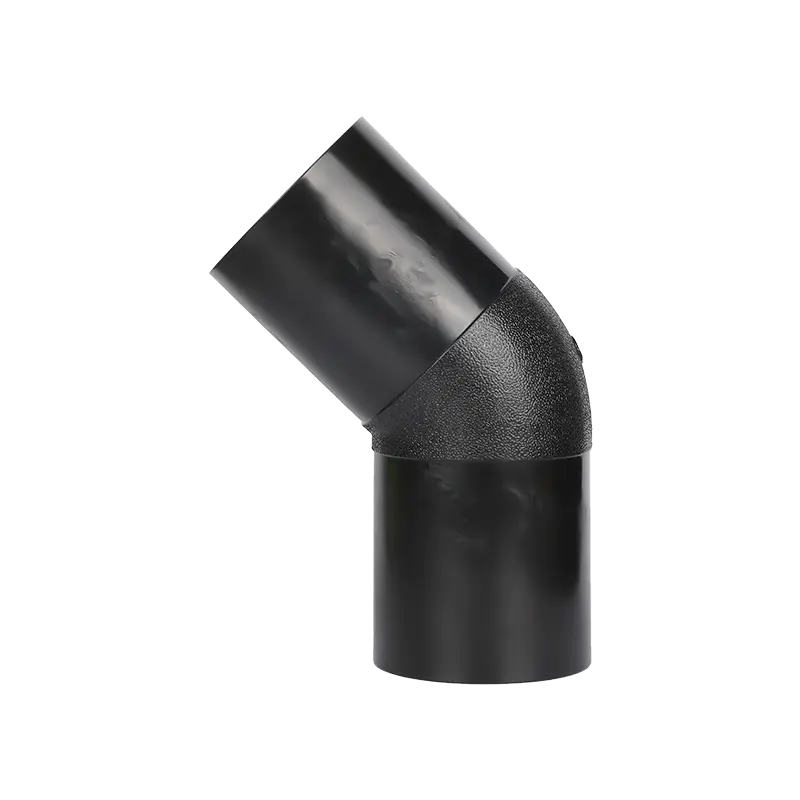

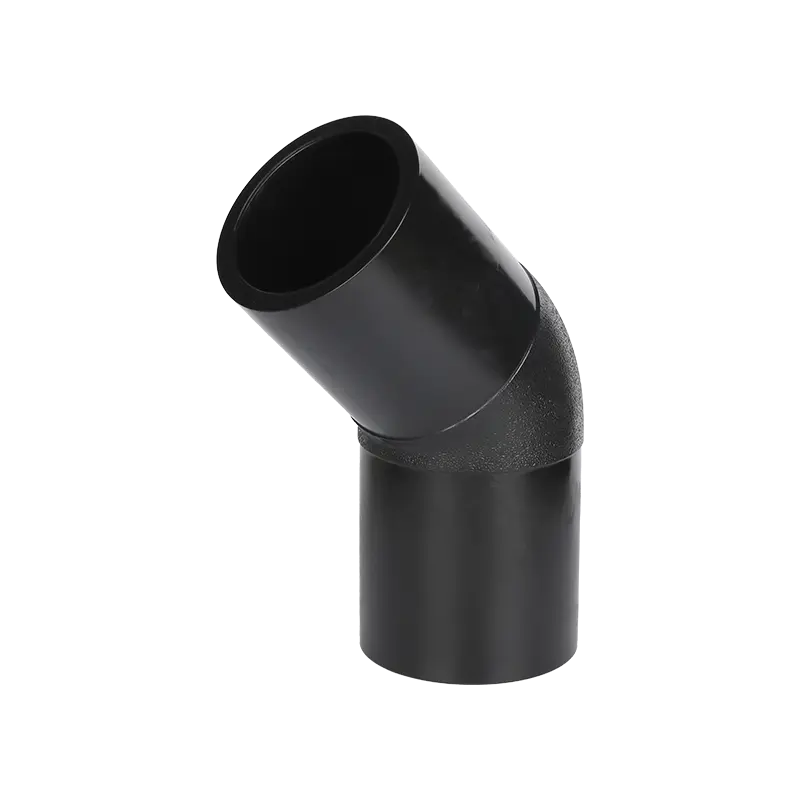

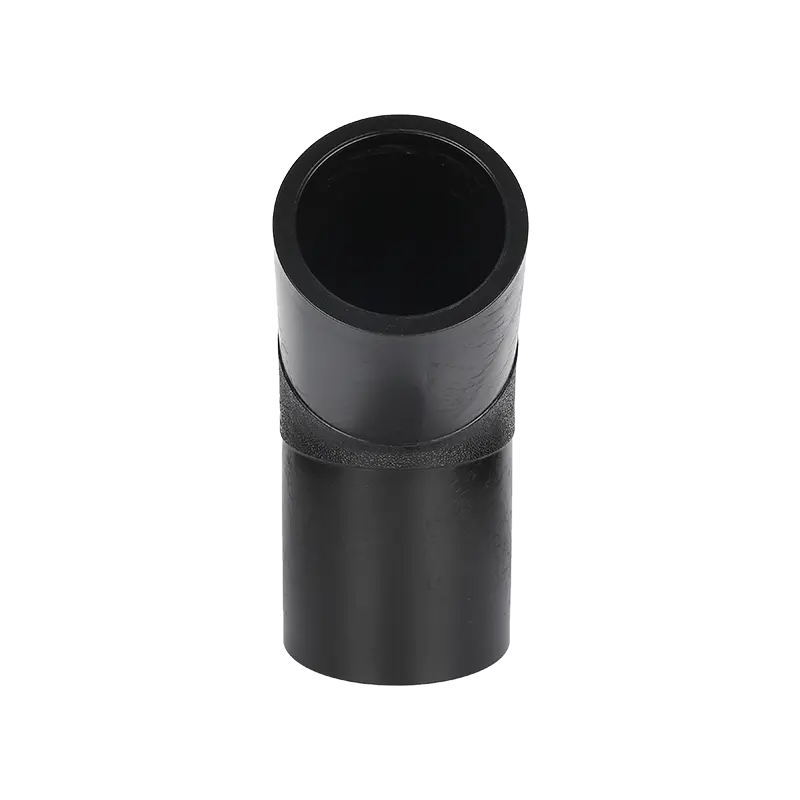

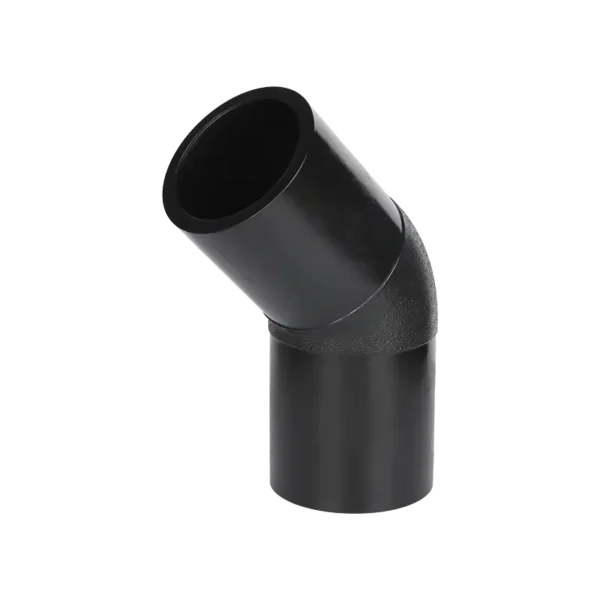

HDPE 45 degree elbow butt fusion fitting

HDPE 45 degree elbow butt fusion fitting produced by injection mould and both side with equal size. Raw material PE100 grade high density polyethylene(HDPE) follow butt fusion welding method to connect HDPE pipe.
HDPE 45 degree elbow butt fusion fitting from CHANGPU company can fully comply with EN12201 and ISO 4427 standard.We also provide ASTM/ANSI HDPE 45 degree elbow butt fusion fitting available 1*1/2”-18” in SDR9,SDR11 & SDR17.Out diameter with inch size can also followed ASTM and ANSI standard which is different with ISO standard.

19641 Items sold in last 3 months

Name	EN12201/ISO 4427 HDPE 45 degree elbow butt fusion fittings	ASTM /ANSI HDPE 45 degree elbow butt fusion fittings
Size	63-800MM	1*1/2”-18”
Pressure	SDR11 (PN16) ,SDR17 (PN10)	SDR9(PN20),SDR11(PN16),SDR17(PN10)
Material	PE100
Package	PP BAG
Color	BLACK or based on required color
Technics	Mould injection
Loading port	Ningbo or Shanghai port
Place of origin	Hangzhou

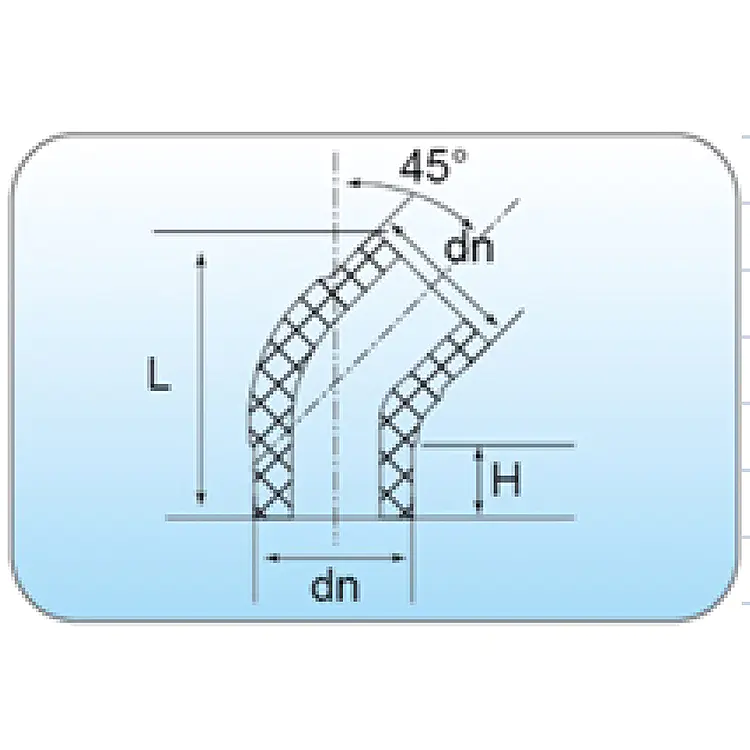

DN	L	H	SDR17	SDR13.6	SDR11
63MM	160	63	√		√
75MM	185	70	√		√
90MM	228	79	√		√
110MM	265	90	√		√
125MM	250	87	√		√
140MM	270	92	√		√
160MM	305	100	√		√
180MM	340	105	√		√
200MM	355	112	√		√
225MM	398	120	√		√
250MM	420	129	√		√
280MM	485	139	√		√
315MM	510	150	√		√
355MM	550	164	√		√
400MM	600	179	√		√
450MM	560	130	√		√
500MM	610	135	√		√
560MM	650	135	√		√
630MM	710	145	√		√
710MM	835	180	√
800MM	900	180	√

DN	D （MM）	L （MM）	L1 （MM）	H （MM） SDR9	H （MM） SDR11	H （MM） SDR17
1*1/2″	48.3	95	67	5.5	4.5
2″	60.3	113	72	7	5.6
3″	88.9	125	80	10	8.2
4″	114.3	137	84	13	10.5
6”	168.3	174	108	19	15.5
8”	219.1	225	152	25	20.5
10”	273	219	136		25.5	16.5
12”	323.9	244	145		30	19.5
14”	355.6	246	147		33	21.5
16”	406.4	253	130		38	24.5
18”	457.2	264	130		43	27.5
