China HDPE Elbow Butt Fusion OEM And ODM Manufacturer

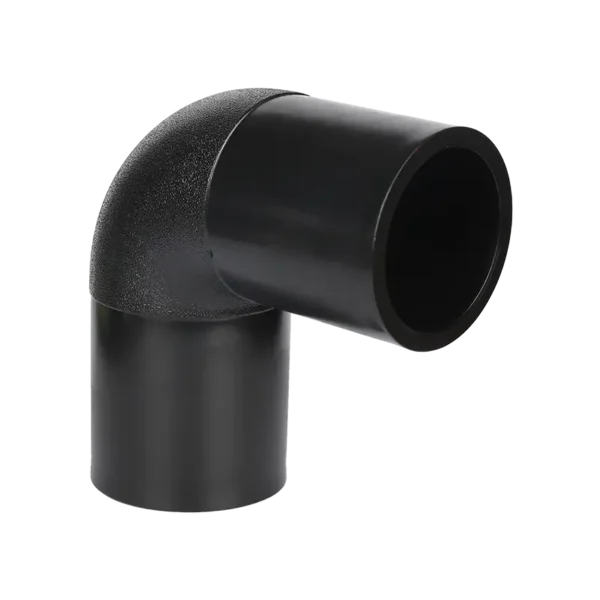

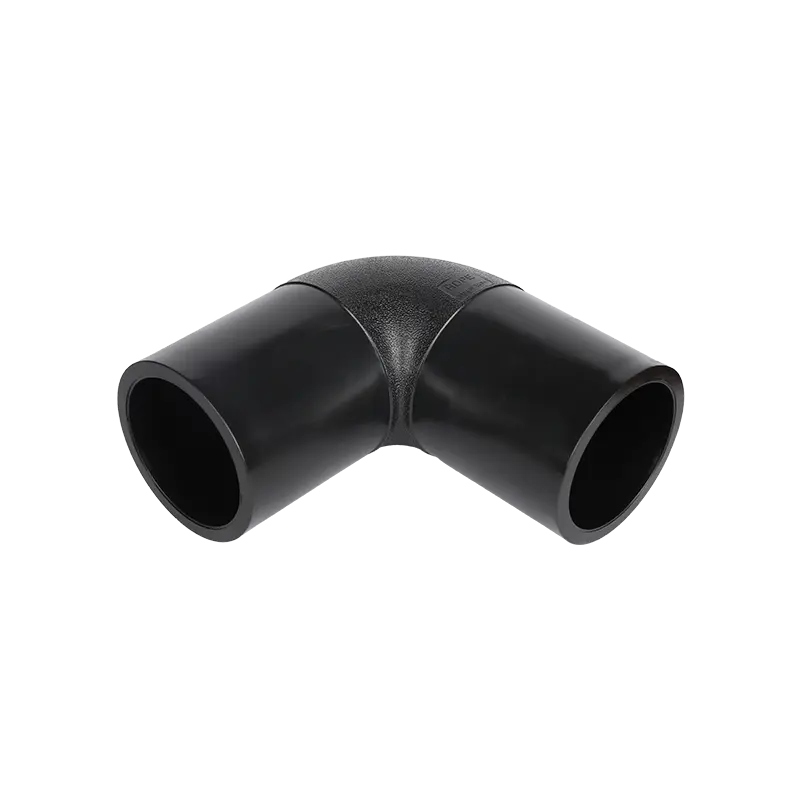

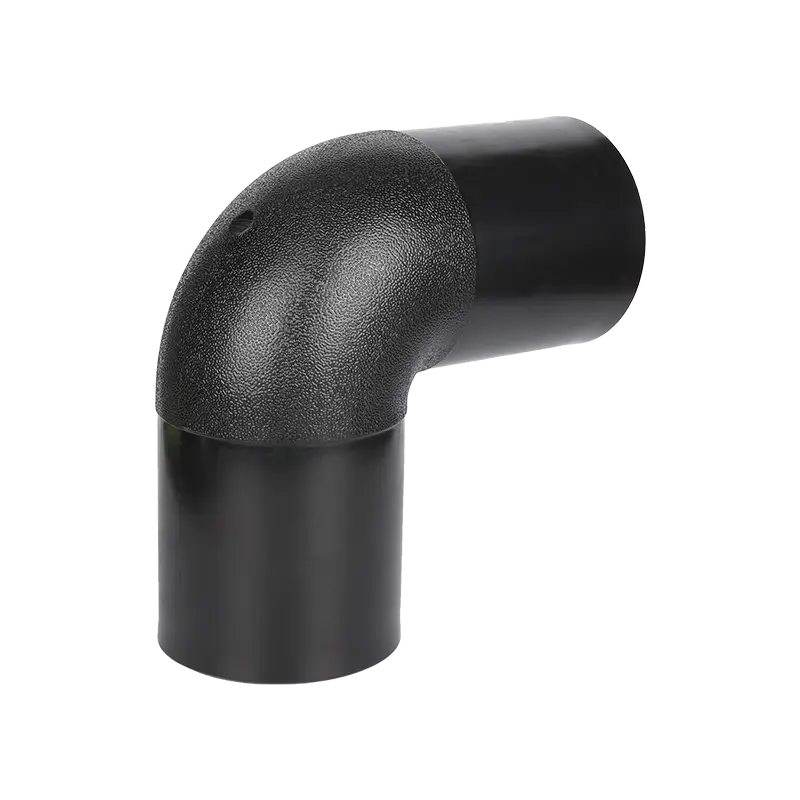

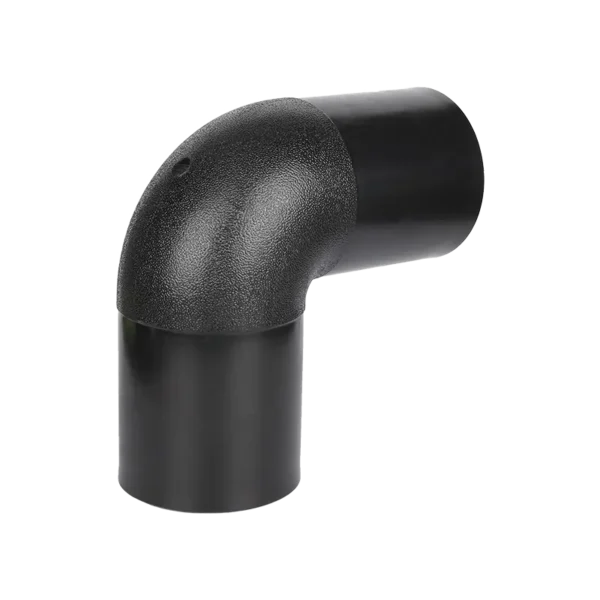

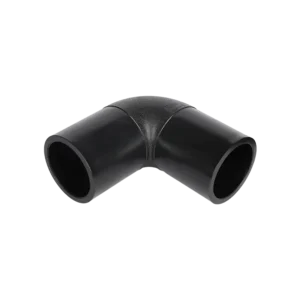

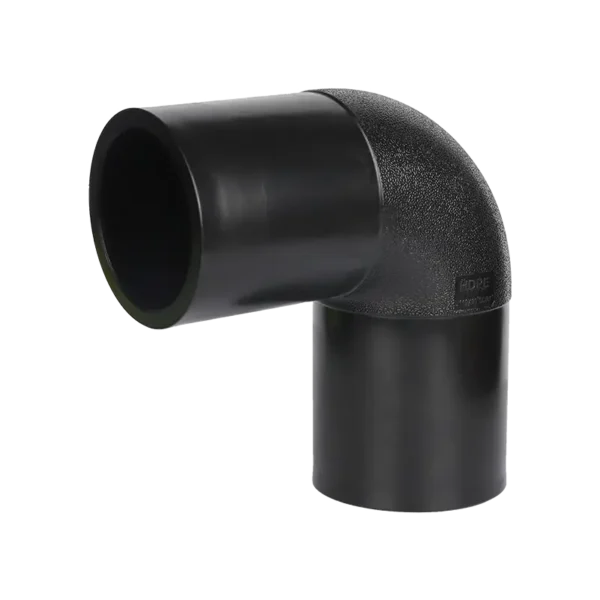

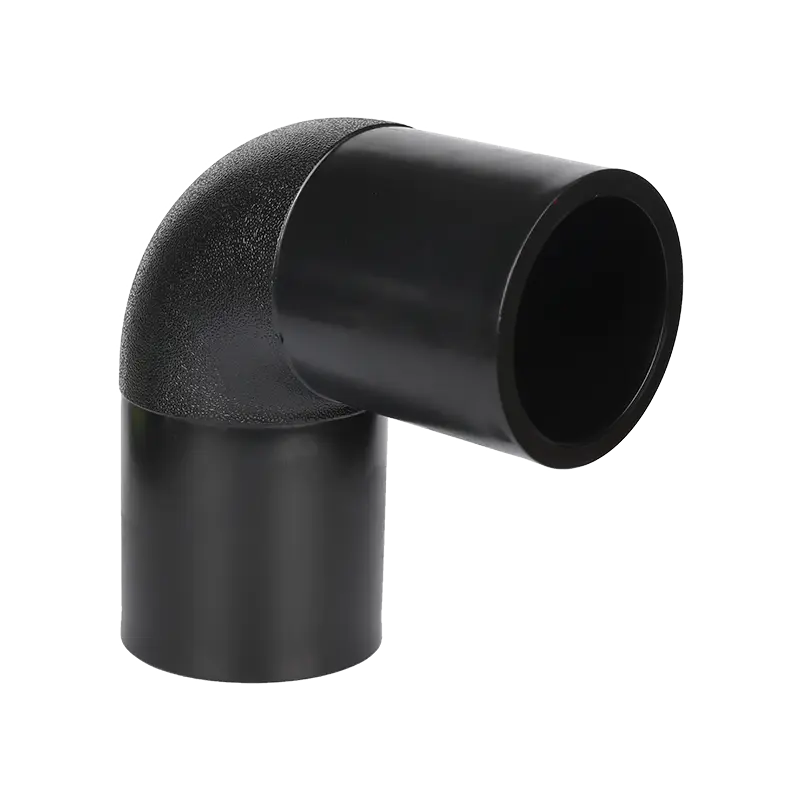

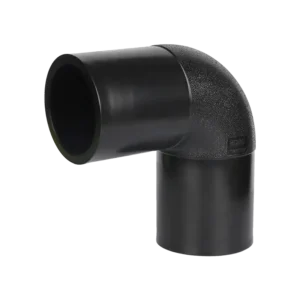

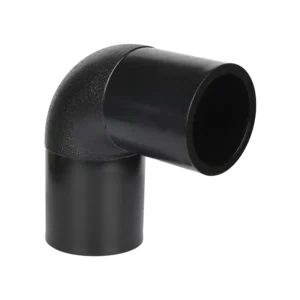

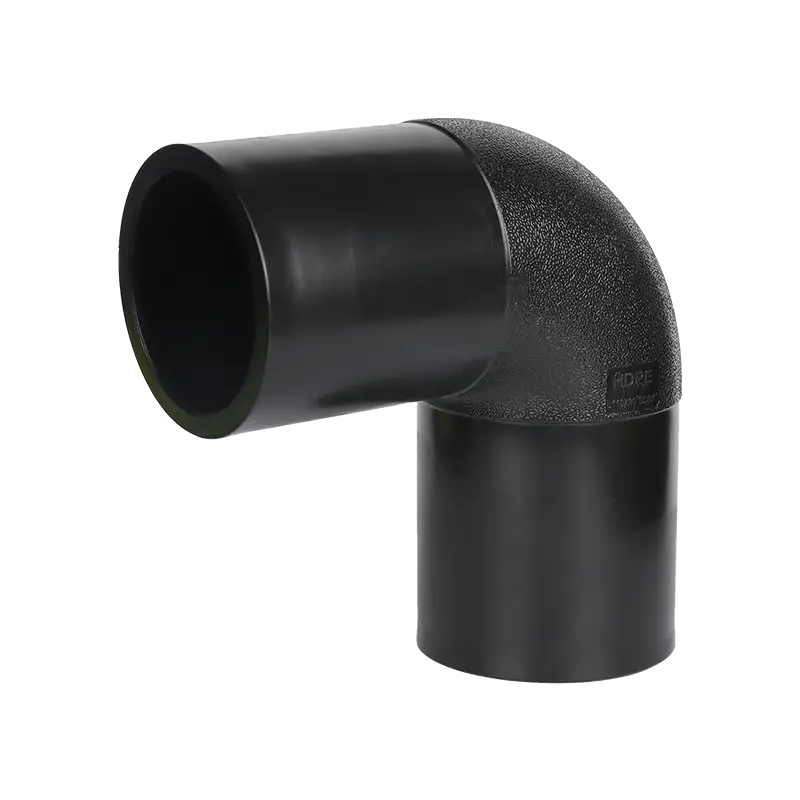

HDPE 90 degree elbow butt fusion fitting

HDPE 90 degree elbow butt fusion fitting produced by injection mould and both side with equal size. Raw material PE100 grade high density polyethylene(HDPE) follow butt fusion welding method to connect HDPE pipe.We also provide ASTM/ANSI HDPE 90 degree elbow butt fusion fitting available 1*1/2”-18” in SDR9,SDR11 & SDR17.
HDPE 90 degree elbow butt fusion fitting from CHANGPU company can also fully comply with EN12201 and ISO 4427 standard.

16551 Items sold in last 3 months

Name	EN12201/ISO 4427 HDPE 90 degree elbow butt fusion fitting	ASTM /ANSI HDPE 90 degree elbow butt fusion fitting
Size	63-800MM	1*1/2”-18”
Pressure	SDR11 (PN16) ,SDR17 (PN10)	SDR9(PN20),SDR11(PN16),SDR17(PN10)
Material	PE100
Package	PP BAG
Color	BLACK
Technics	Mould injection
Loading port	Ningbo or Shanghai port
Place of origin	Hangzhou

DN	L	H	SDR17	SDR13.6	SDR11
63MM	132	63	√		√
75MM	160	70	√		√
90MM	180	79	√		√
110MM	220	90	√		√
125MM	225	87	√		√
140MM	240	92	√		√
160MM	270	100	√		√
180MM	298	105	√		√
200MM	325	112	√		√
225MM	365	120	√		√
250MM	394	129	√		√
280MM	435	139	√		√
315MM	480	150	√		√
355MM	540	164	√		√
400MM	600	179	√		√
450MM	605	150	√		√
500MM	660	150	√		√
560MM	720	155	√		√
630MM	790	155	√		√
710MM	915	180	√
800MM	1005	180	√

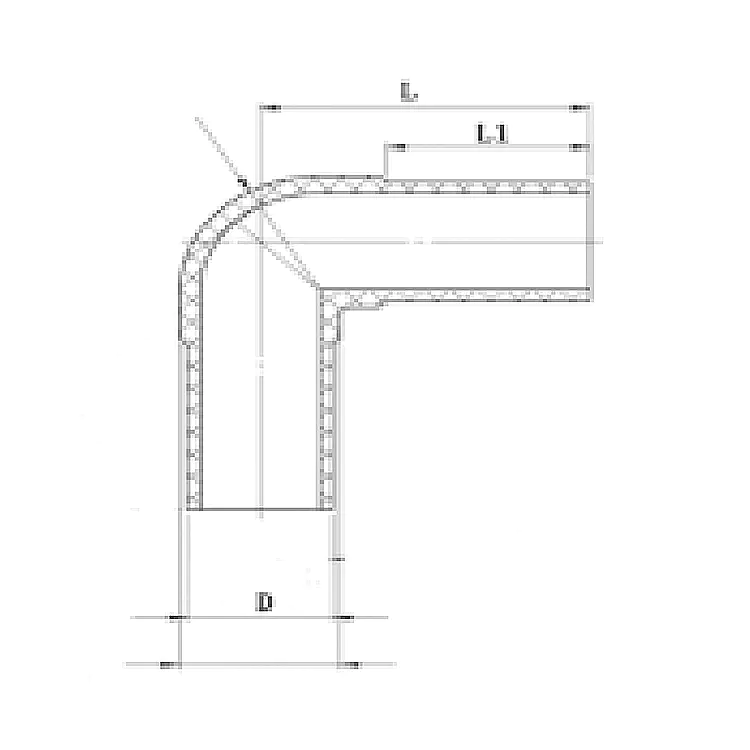

DN	D （MM）	L （MM）	L1 （MM）	H （MM） SDR9	H （MM） SDR11	H （MM） SDR17
1*1/2″	48.3	95	67	5.5	4.5
2″	60.3	113	72	7	5.6
3″	88.9	125	80	10	8.2
4″	114.3	137	84	13	10.5
6”	168.3	174	108	19	15.5
8”	219.1	225	152	25	20.5
10”	273	219	136		25.5	16.5
12”	323.9	244	145		30	19.5
14”	355.6	246	147		33	21.5
16”	406.4	253	130		38	24.5
18”	457.2	264	130		43	27.5
