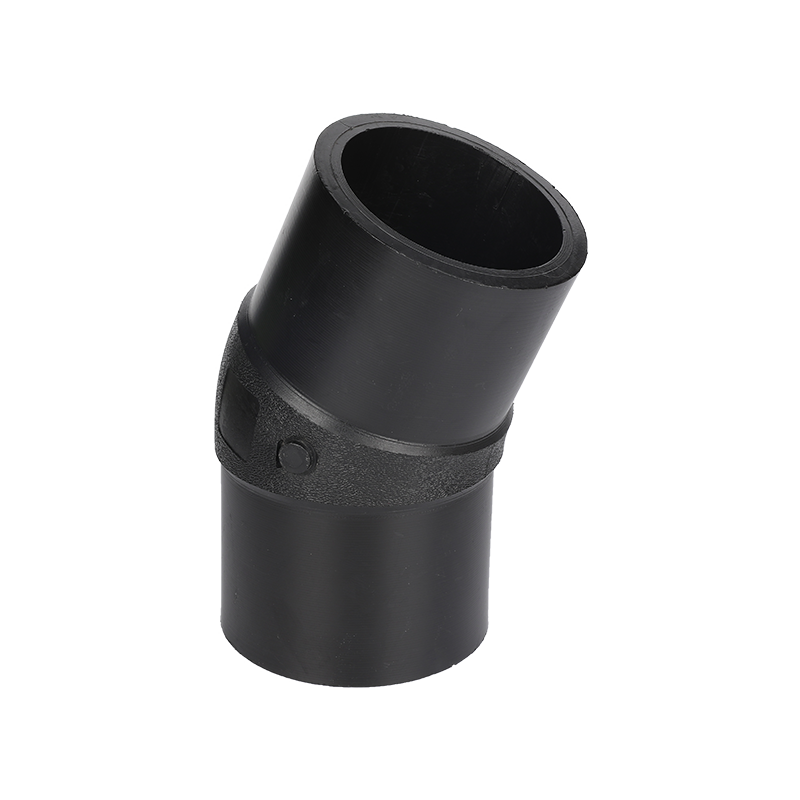

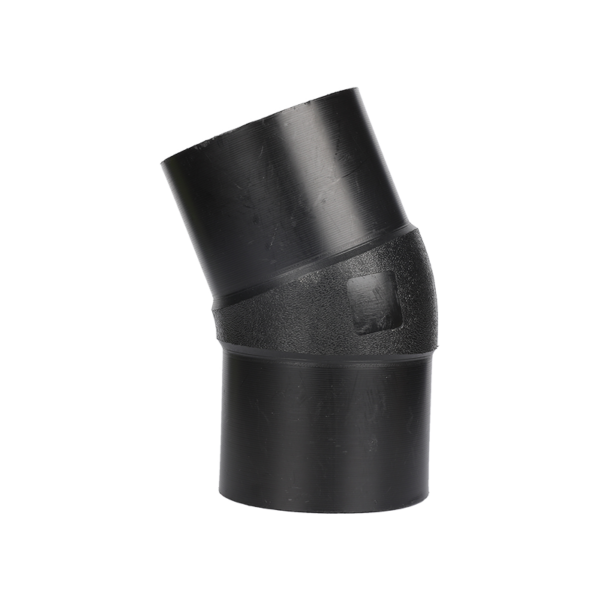

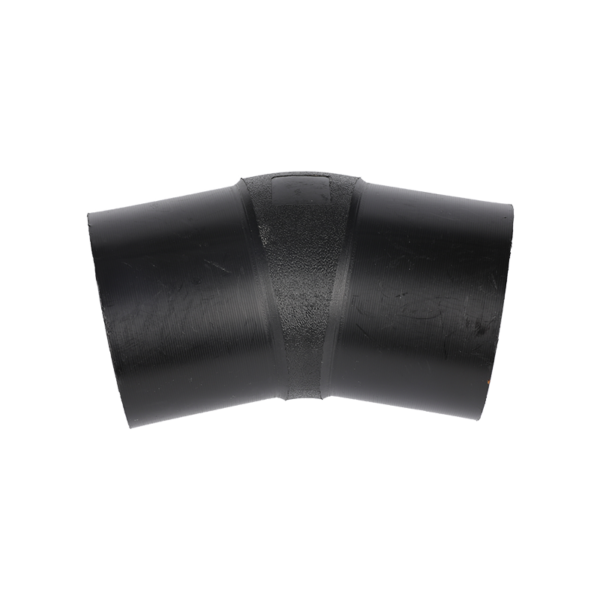

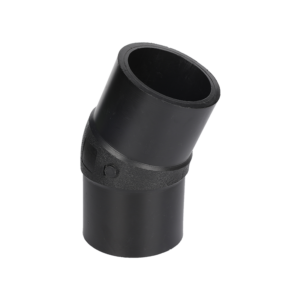

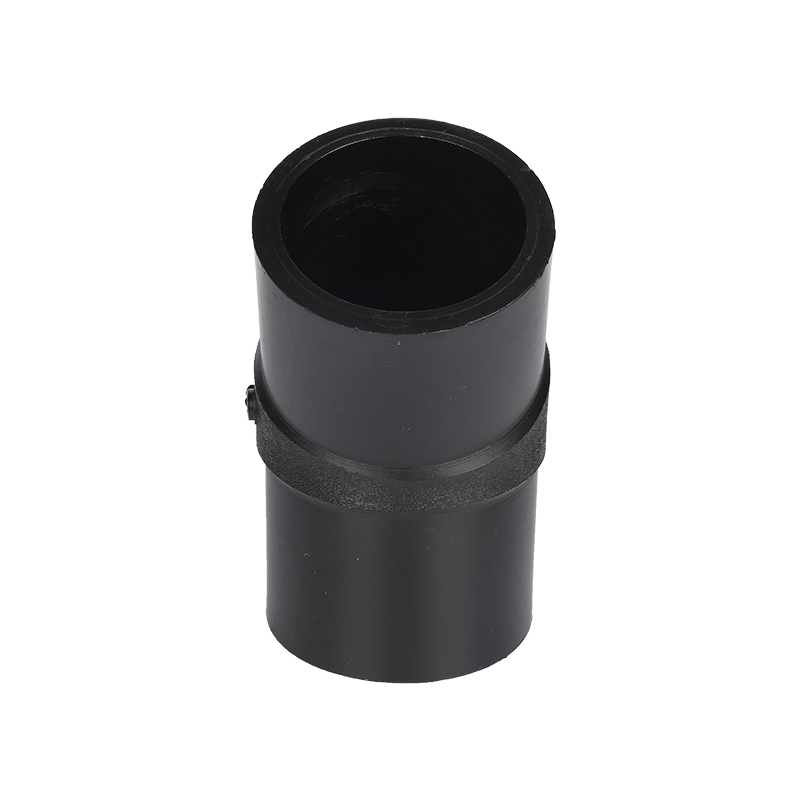

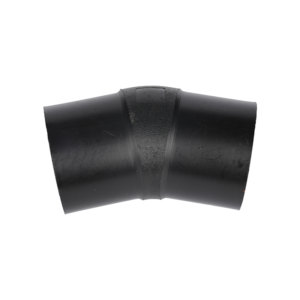

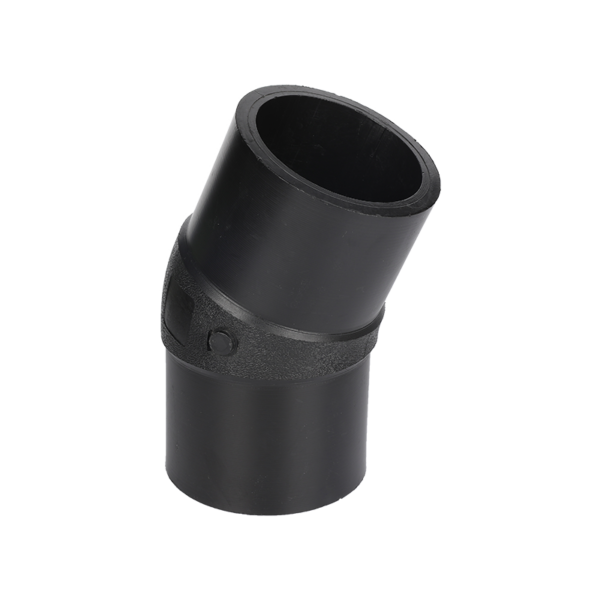

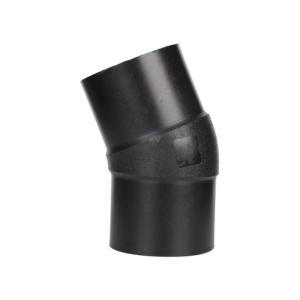

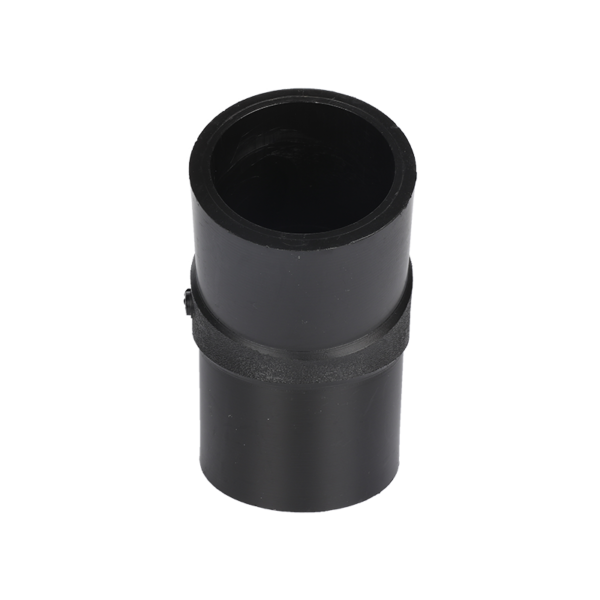

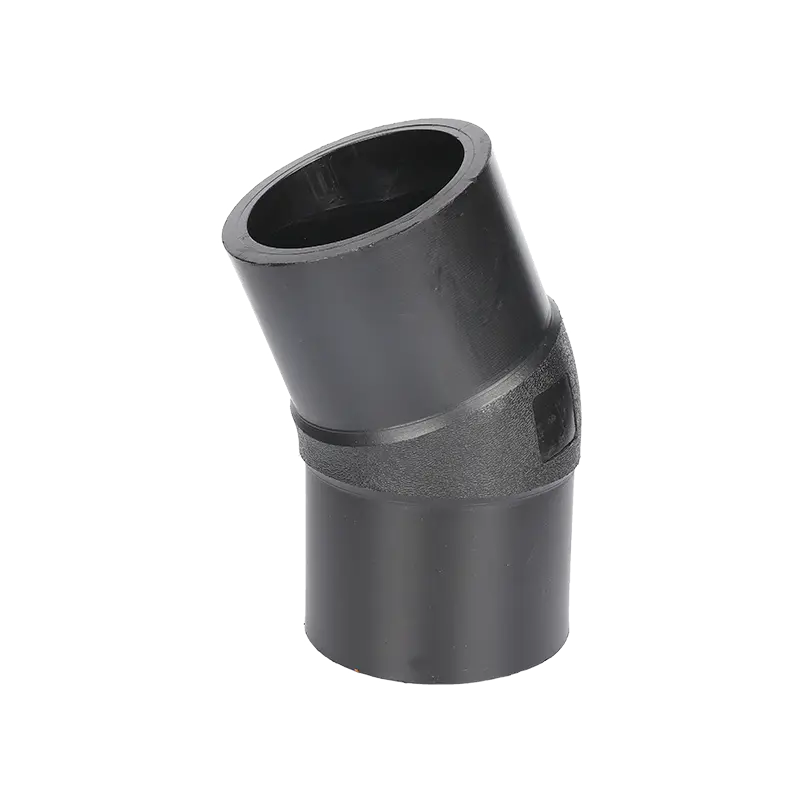

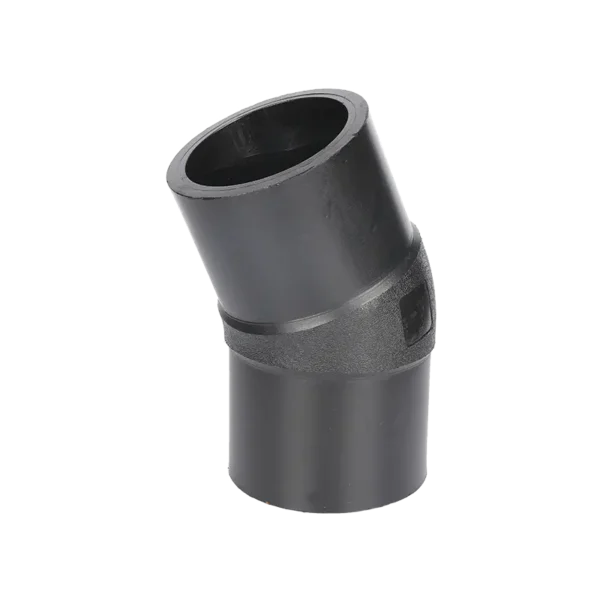

HDPE 22.5 degree elbow butt fusion fitting

HDPE 22.5 degree elbow butt fusion fitting produced by injection mould and both side with equal size. Raw material PE100 grade high density polyethylene(HDPE) follow butt fusion welding method to connect HDPE pipe.
HDPE 22.5 degree Eelbow butt fusion fitting from CHANGPU company can fully comply with EN12201 and ISO 4427 standard.

15305 Items sold in last 3 months

Name	HDPE 22.5 degree degree elbow butt fusion fitting
Size	90-800MM
Pressure	SDR11 (PN16) ,SDR13.6 (PN12.5),SDR17 (PN10)
Material	PE100
Package	PP BAG
Color	BLACK or based on required color
Technics	Mould injection
Loading port	Ningbo or Shanghai port
Place of origin	Hangzhou

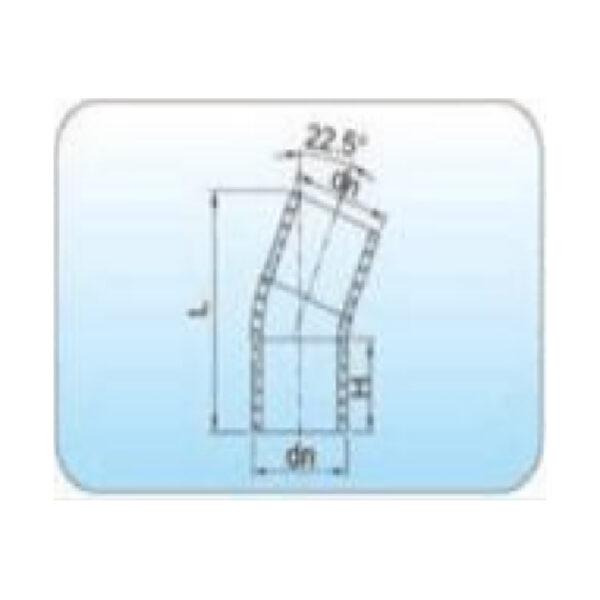

DN	L	H	SDR11	SDR13.6	SDR17
90MM	192	71	√	√
110MM	194	72	√	√
125MM	208	80	√	√
140MM	220	80	√	√
160MM	240	82	√	√
180MM	280	105	√	√
200MM	260	85	√	√
225MM	270	90	√	√
250MM	315	100	√	√
280MM	320	105	√	√
315MM	355	110	√	√
355MM	395	105	√		√
400MM	400	110	√		√
450MM	440	115	√		√
500MM	450	115	√		√
560MM	520	135	√		√
630MM	540	130	√		√
710MM	690	170	√		√
800MM	720	170	√		√
