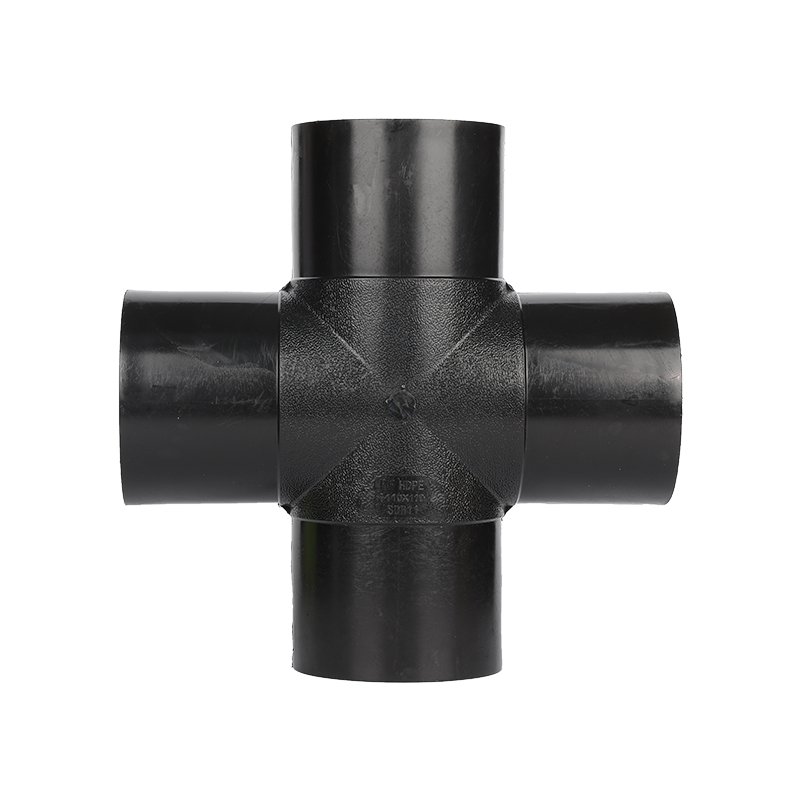

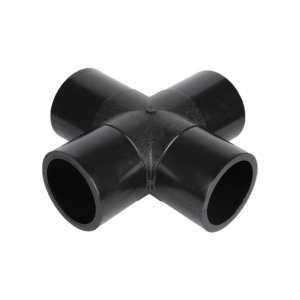

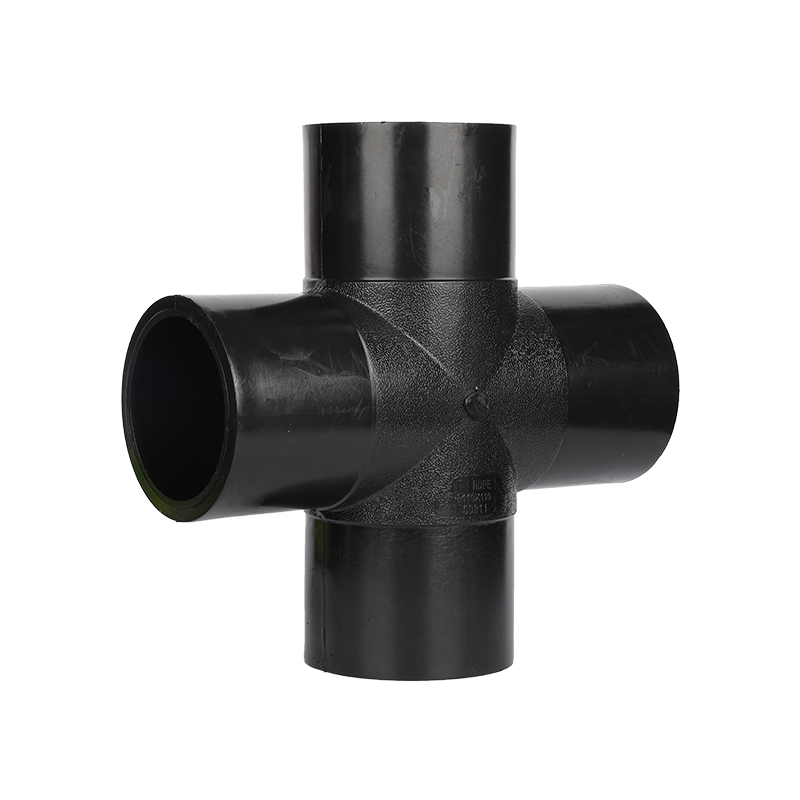

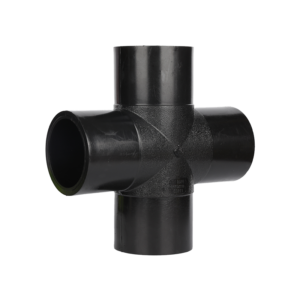

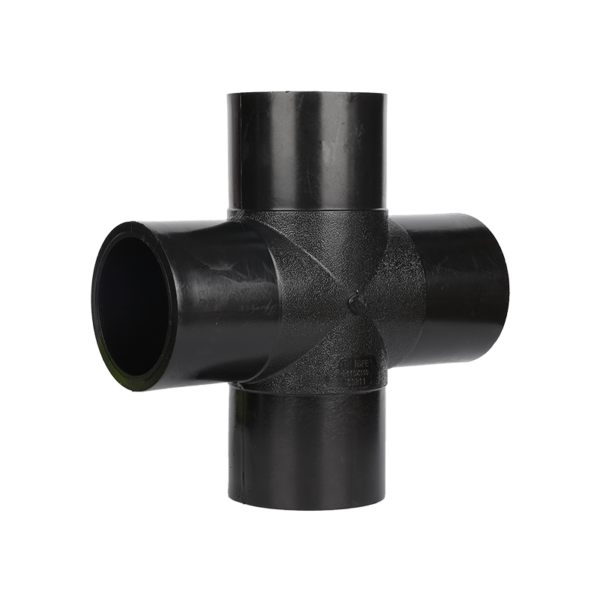

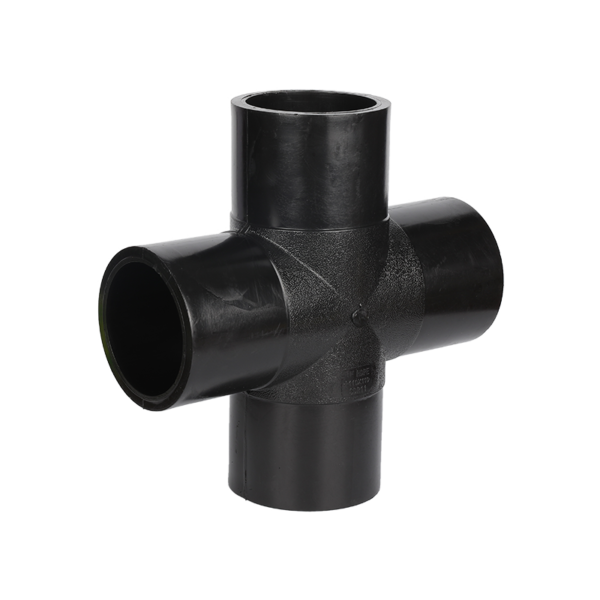

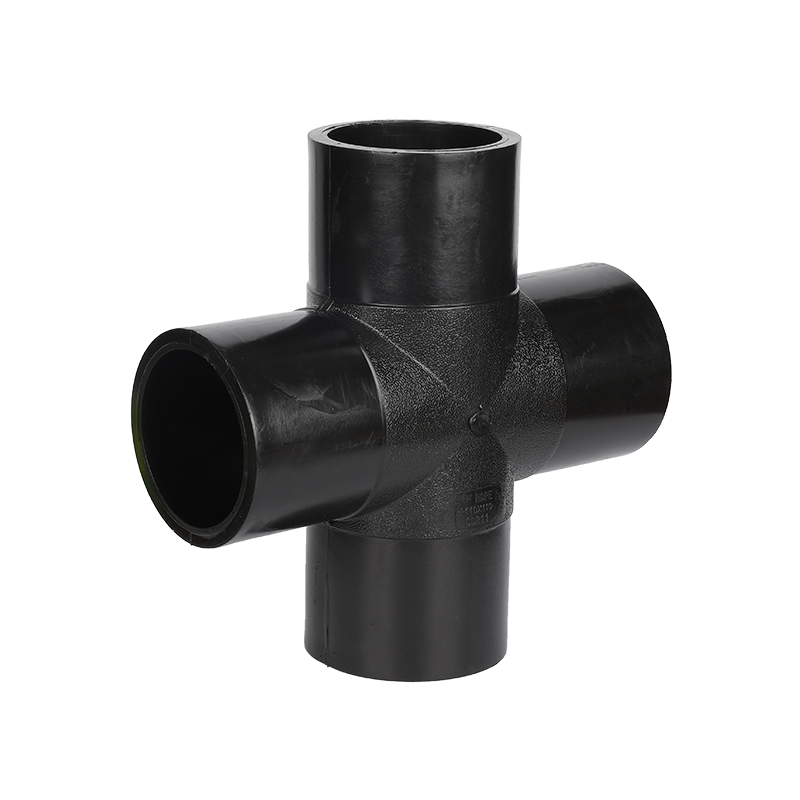

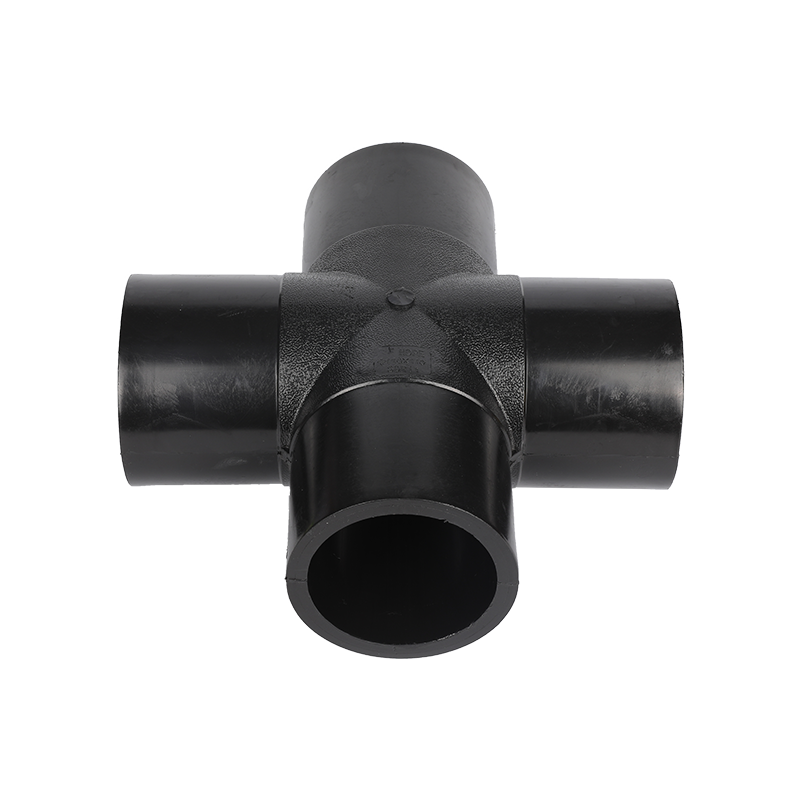

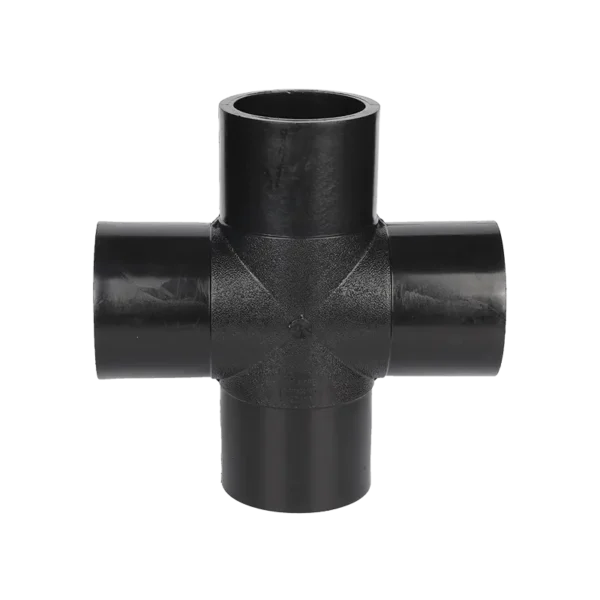

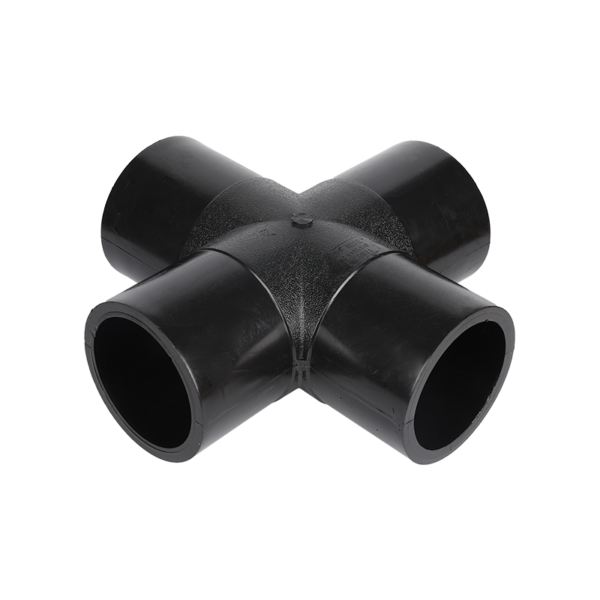

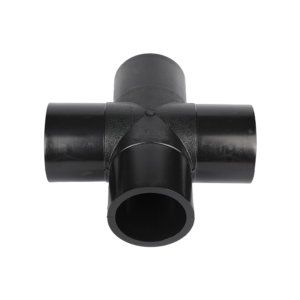

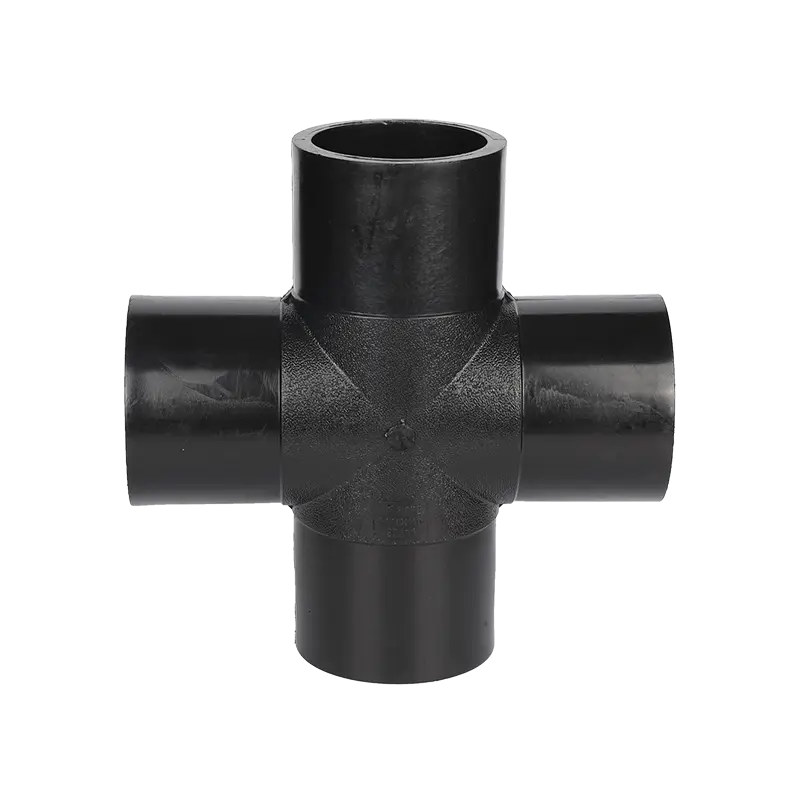

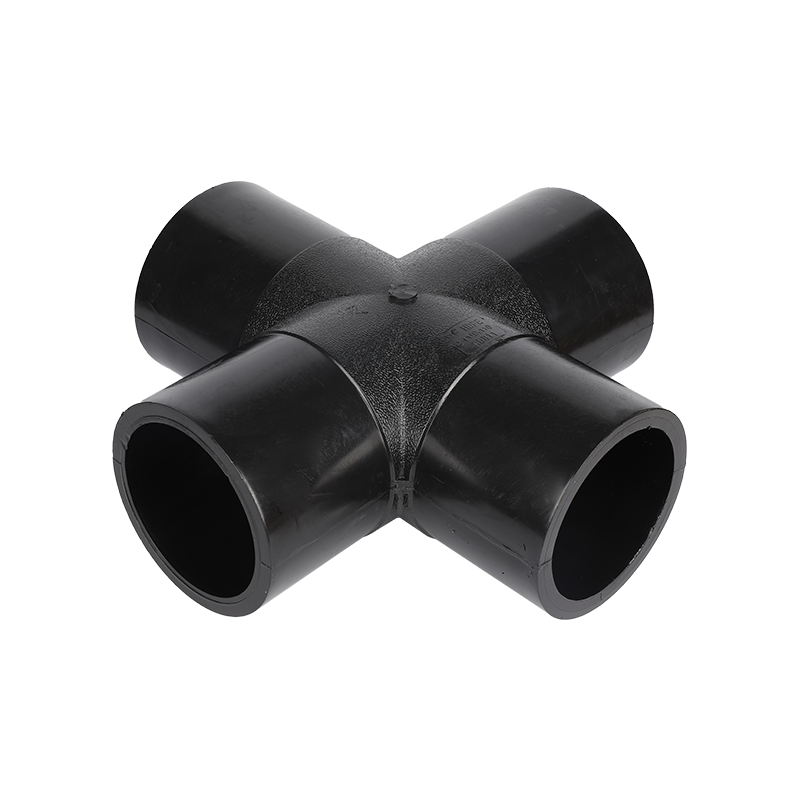

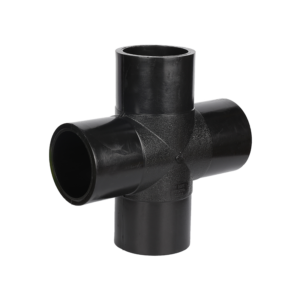

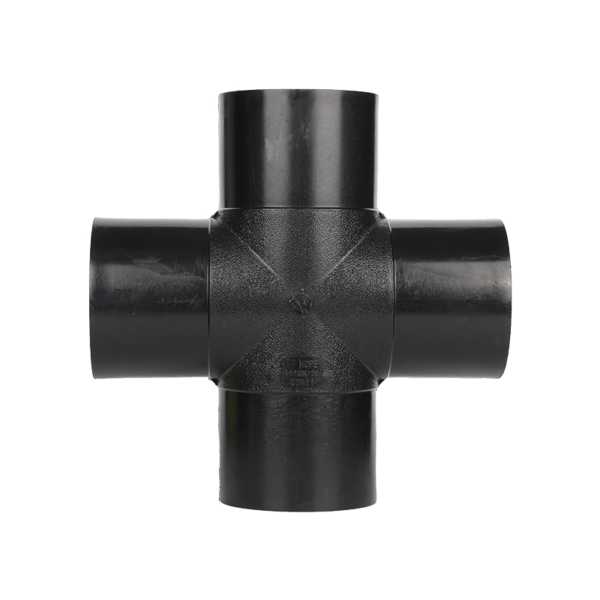

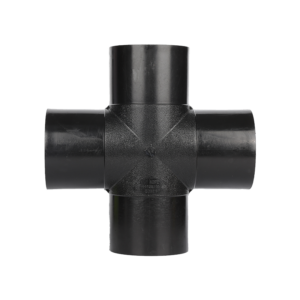

| Name | HDPE CROSS BUTT FUSION FITTINGS |
| Size | 63-800MM |
| Pressure | SDR11 (PN16) ,SDR13.6 (PN12.5),SDR17 (PN10) |
| Material | PE100 |
| Package | PP BAG |
| Color | BLACK or based on required color |
| Technics | Mould injection |
| Loading port | Ningbo or Shanghai port |
| Place of origin | Hangzhou |

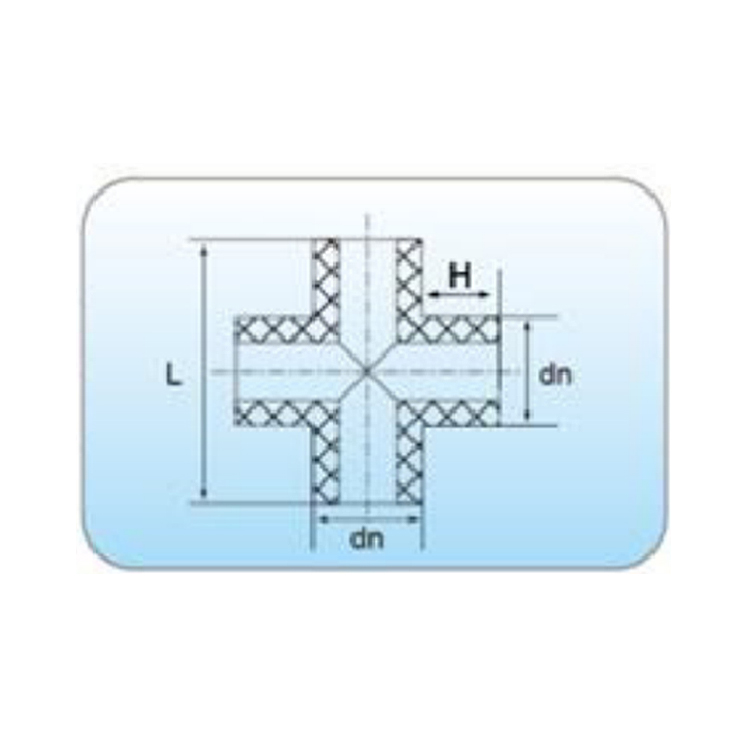

| DN | L | H | SDR17 | SDR13.6 | SDR11 |
| 63MM | 198 | 63 | √ | ||
| 75MM | 225 | 70 | √ | ||
| 90MM | 260 | 78 | √ | √ | |
| 110MM | 285 | 80 | √ | √ | |
| 125MM | 295 | 85 | √ | √ | |
| 160MM | 352 | 88 | √ | √ | |
| 200MM | 400 | 92 | √ | √ | |
| 225MM | 415 | 92 | √ | √ | |
| 250MM | 480 | 103 | √ | √ | |
| 315MM | 555 | 103 | √ | √ | |
| 355MM | 640 | 140 | √ | √ | |
| 400MM | 650 | 112 | √ | √ | |
| 450MM | 740 | 140 | √ | ||
| 500MM | 810 | 150 | √ | ||
| 560MM | 875 | 150 | √ | ||
| 630MM | 960 | 160 | √ | ||
| 710MM | 1072 | 180 | √ | ||
| 800MM | 1202 | 185 | √ |
