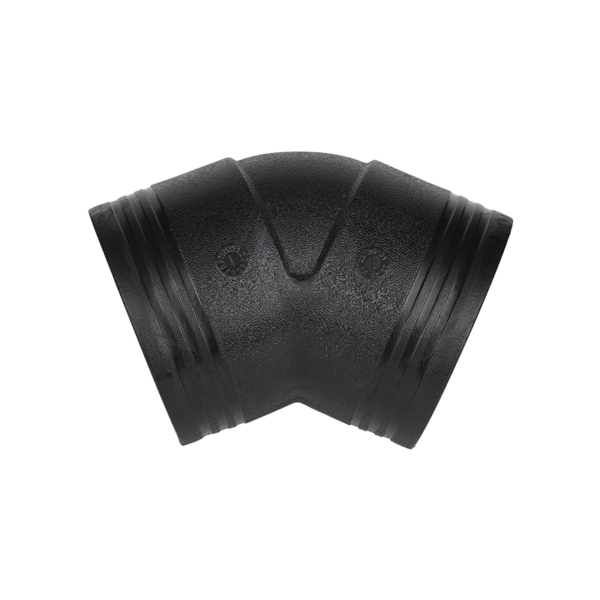

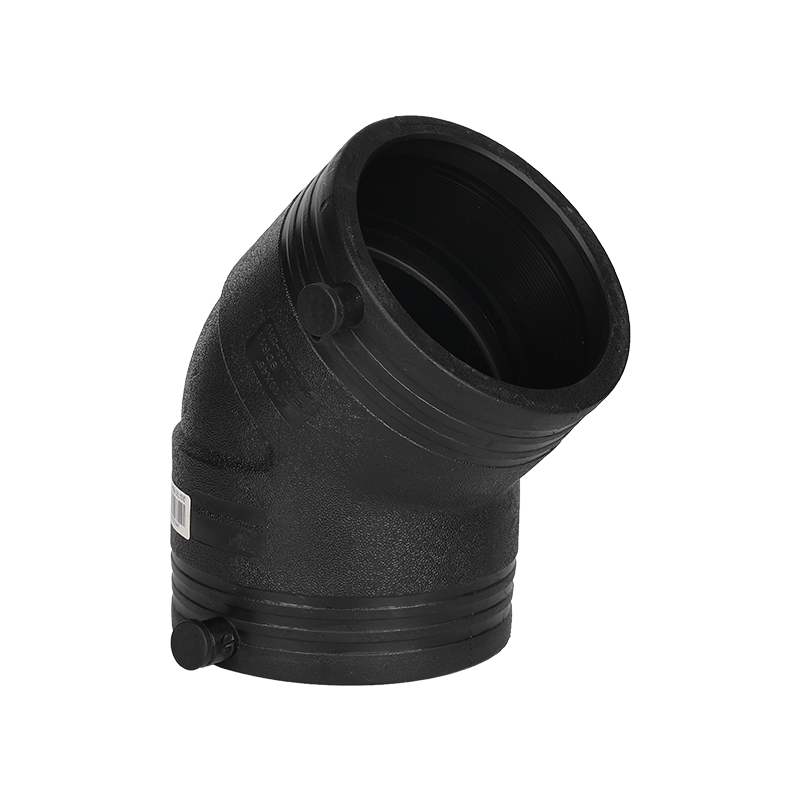

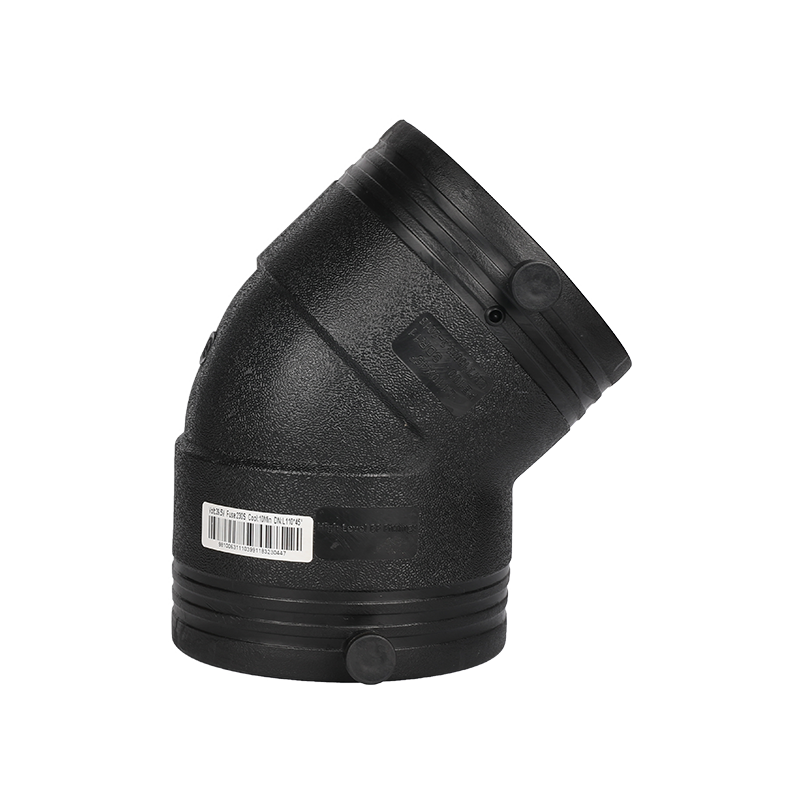

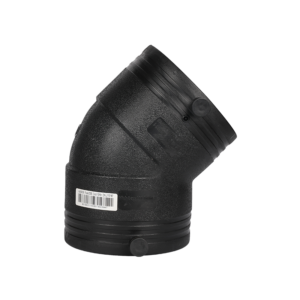

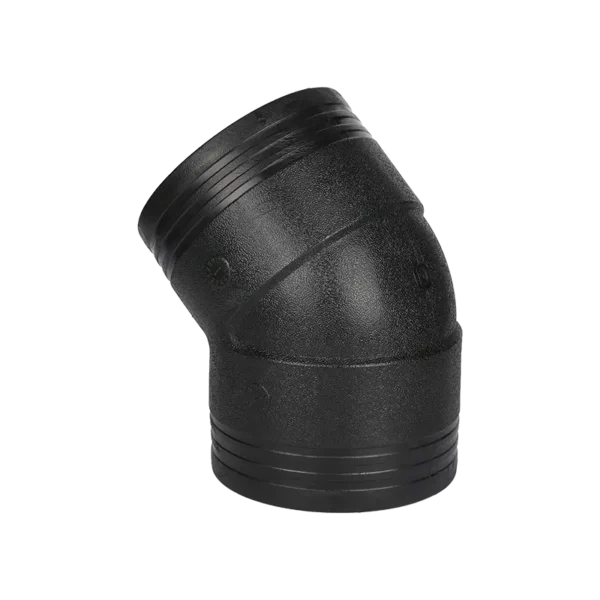

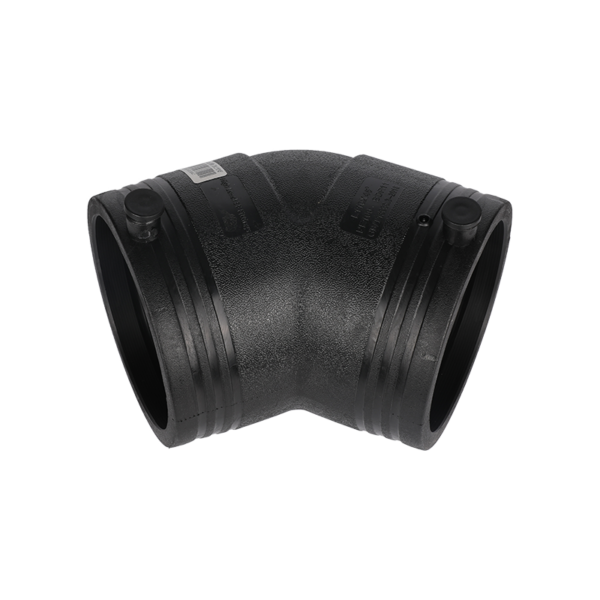

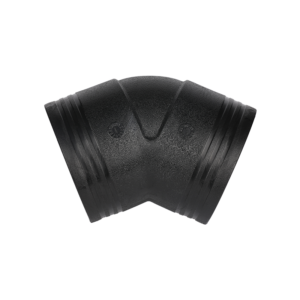

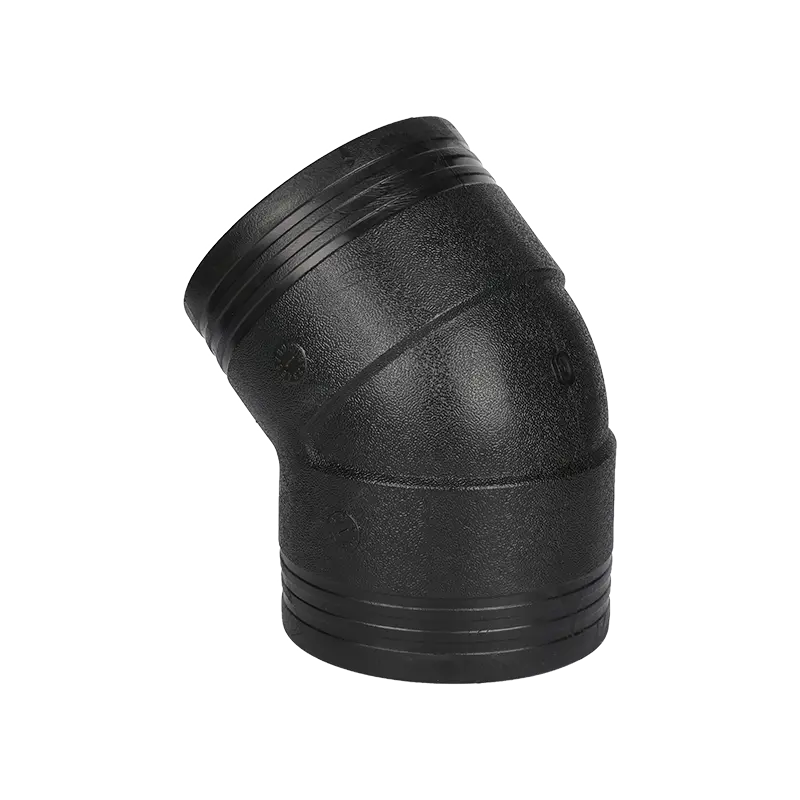

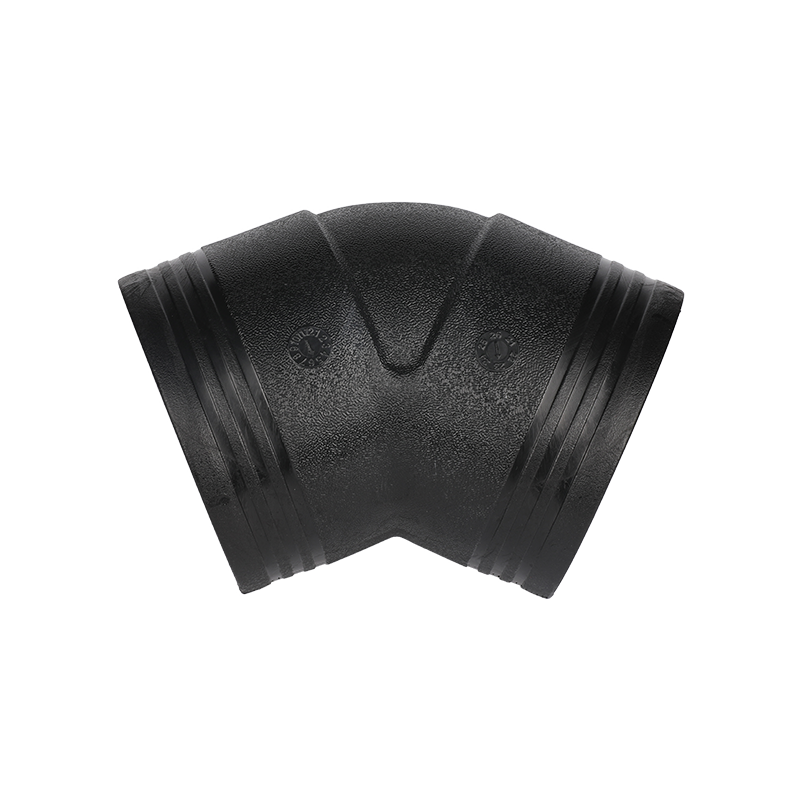

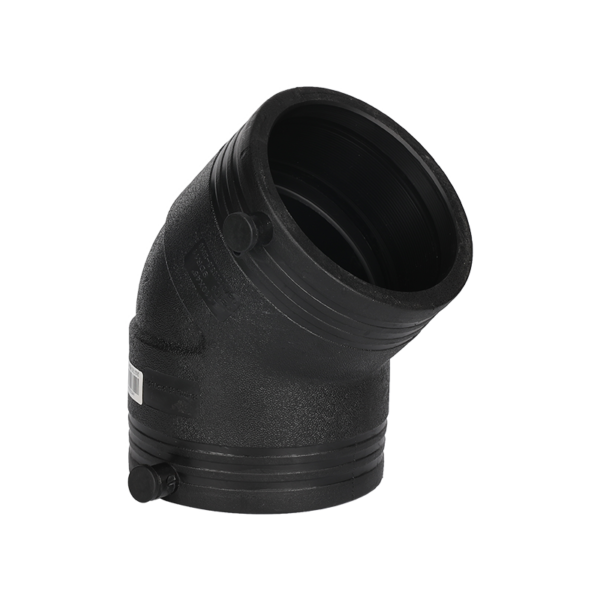

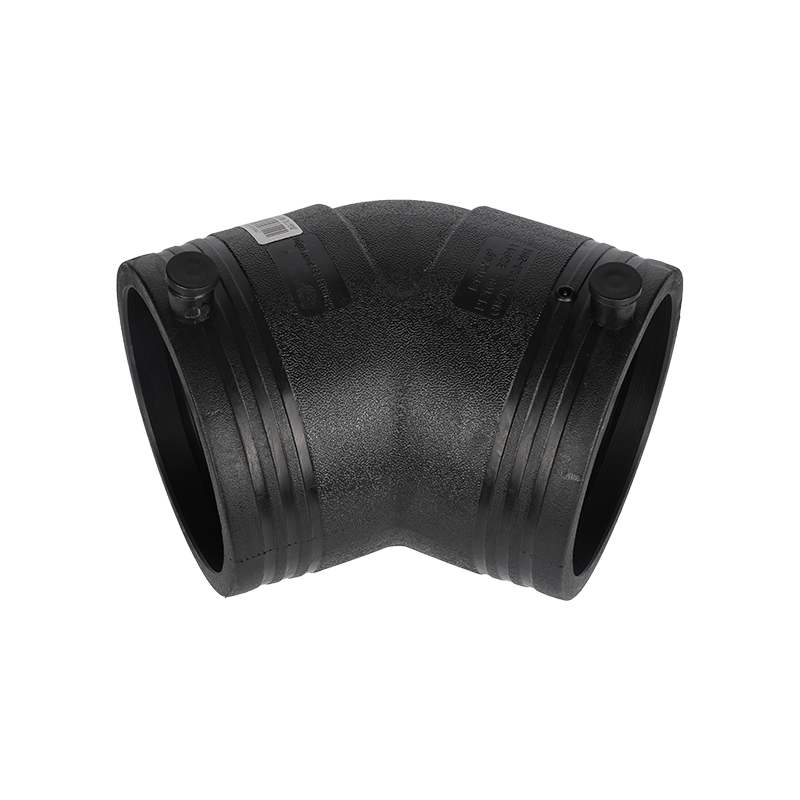

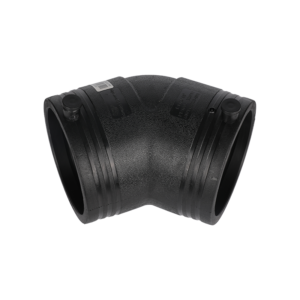

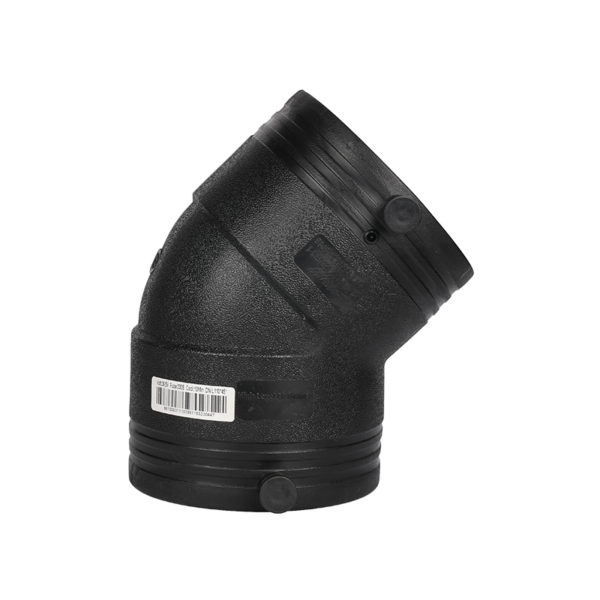

HDPE electrofusion 45°elbow

HDPE 45°ELBOW electrofusion produced by injection mould and both side with equal size.Raw material PE100 grade balck high density polyethylene(HDPE). Water PN16 / Gas 10 Bar (Depending on PE pipe welded to and any local pipeline pressure regulations).
Electrofusion fittings enable utilities, designers and contractors to create fully welded pipe networks.
The production quality, reliability and flexibility of electrofusion fittings provides the certainty and peace of mind needed for polyethylene pipe jointing.

HDPE 45°ELBOW electrofusion from CHANGPU company can fully comply with ISO9001 quality management system approvals. GB/T13663.3-2018

16187 Items sold in last 3 months

Name	HDPE 45°ELBOW electrofusion
Size	50-630mm
Pressure	SDR11(PN16),SDR17(PN10)
Material	PE100
Package	Carton
Color	BLACK
Technics	Mould injection
Loading port	Ningbo or Shanghai port
Place of origin	Hangzhou

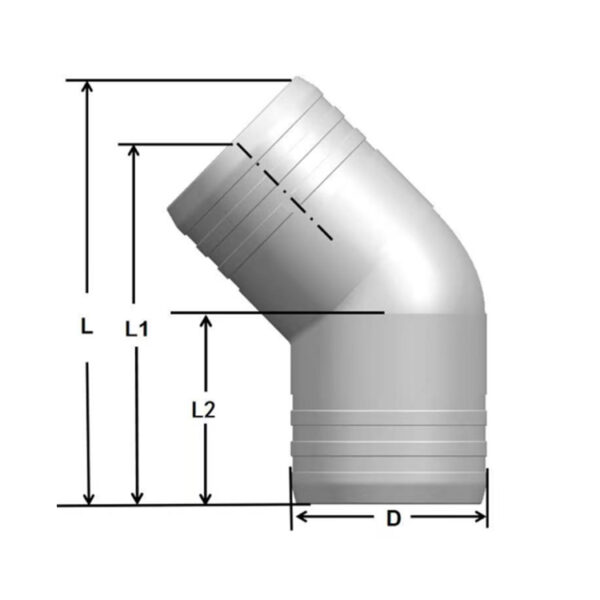

SIZE（MM）	D（MM）	L1（MM）	L2（MM）	L（MM）	SDR11	SDR17
50	62	105	68	135	√
63	77	120	78	155	√
75	90	130	85	170	√
90	107	140	93	185	√
110	135	155	105	210	√
125	150	170	118	235	√
140	165	200	100	260	√
160	190	200	135	270	√
200	237	240	163	325	√
225	267	250	178	355	√
250	297	270	190	380	√
315	373	325	235	470	√
355	422	350	175	500	√
400	473	420	153	540	√
450	530	450	225	630	√
500	590	450	225	660	√
630	741	600	410	820	√
315	352	325	233	465		√
355	397	345	175	490		√
400	447	400	200	540		√
500	563	450	225	650		√
630	700	600	410	810		√
