HDPE Electrofusion 90° Elbow OEM And ODM Manufacturer

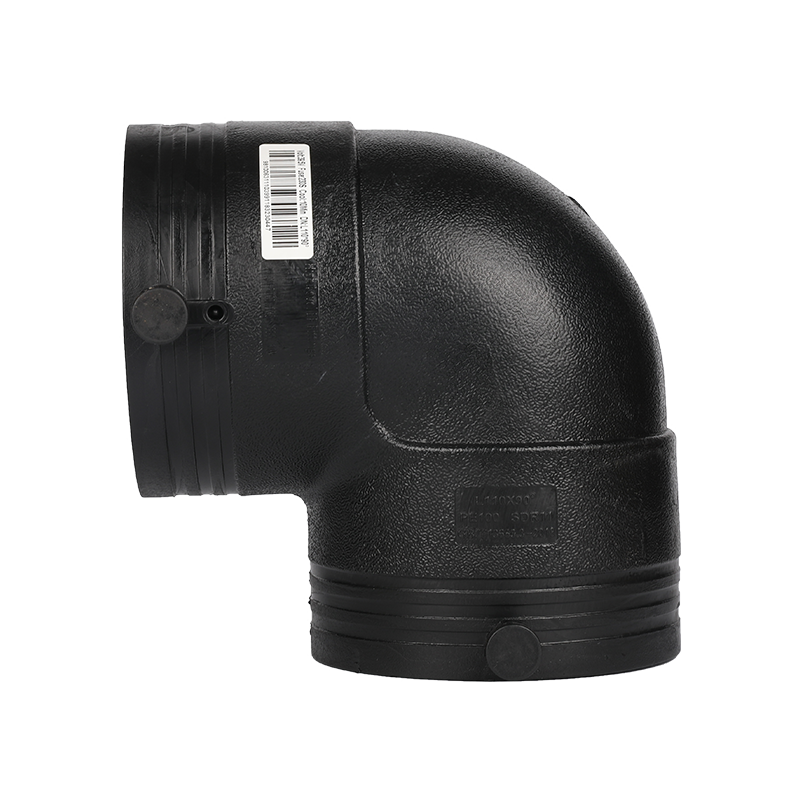

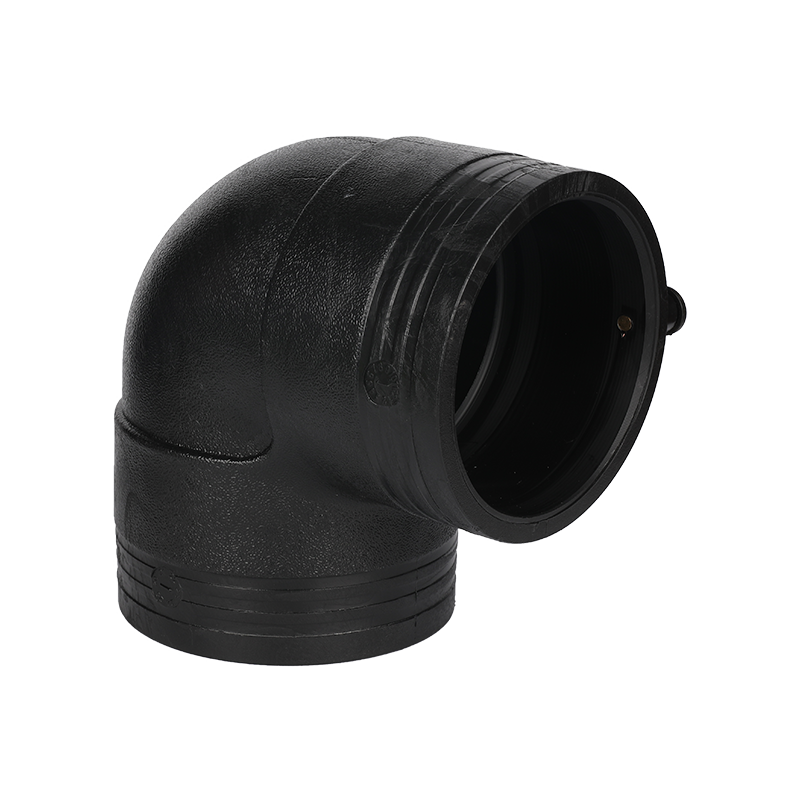

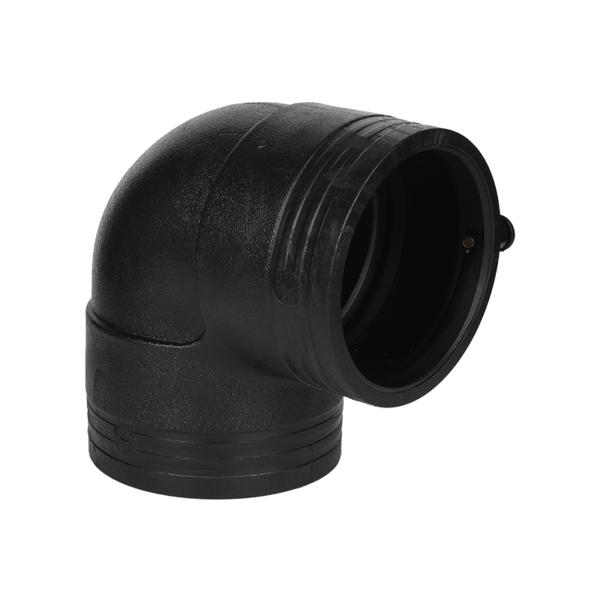

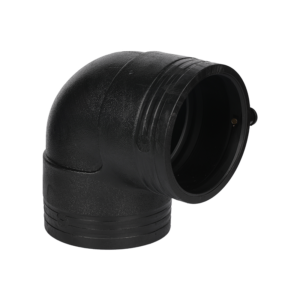

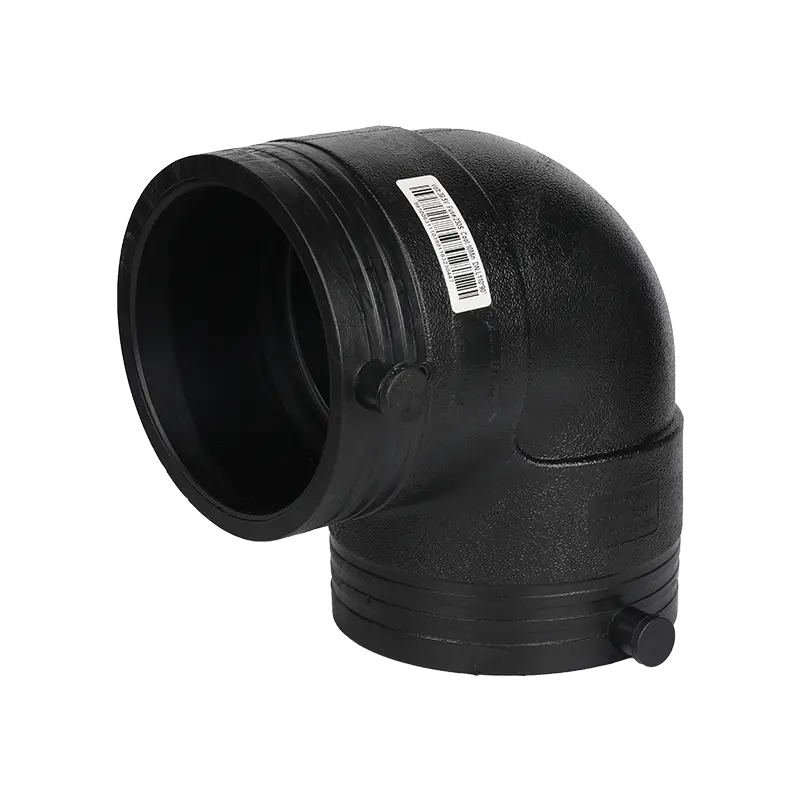

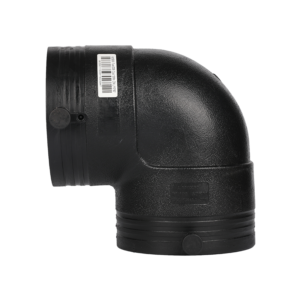

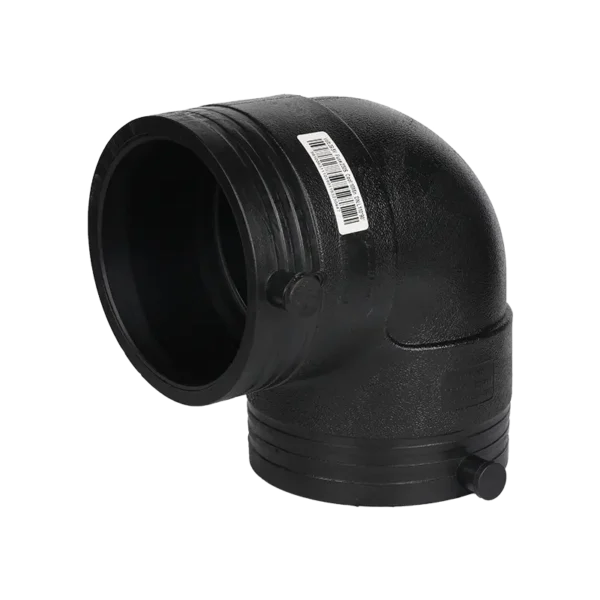

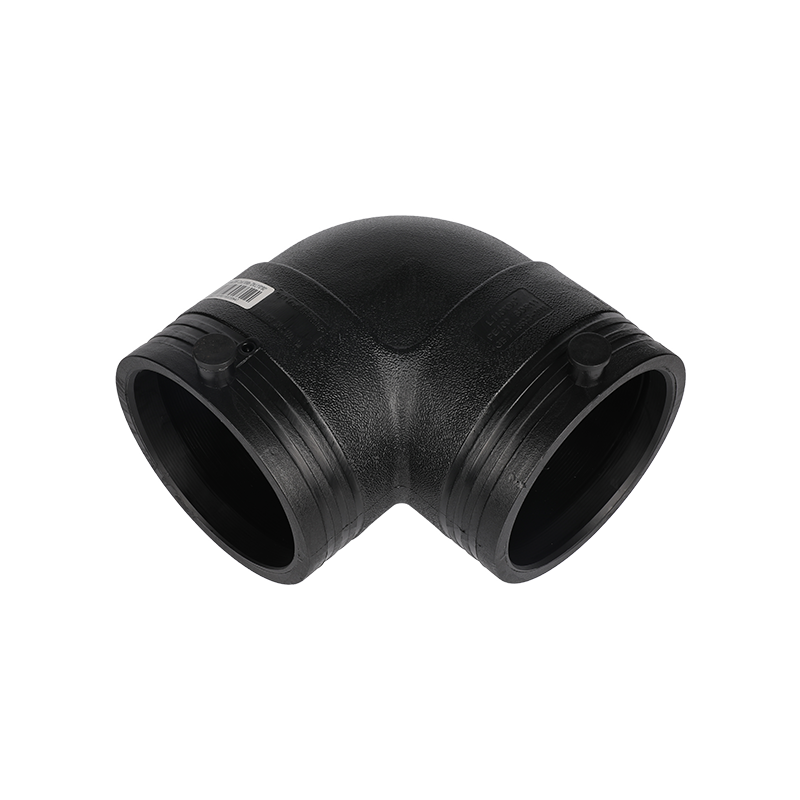

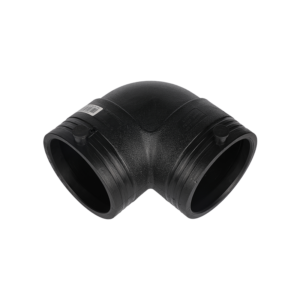

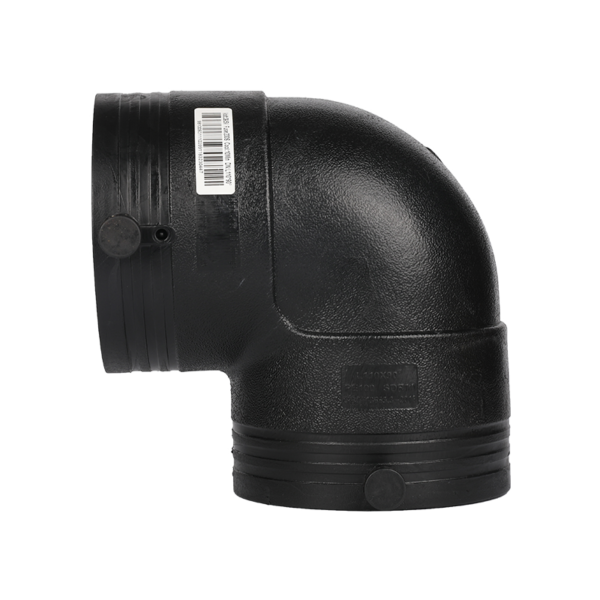

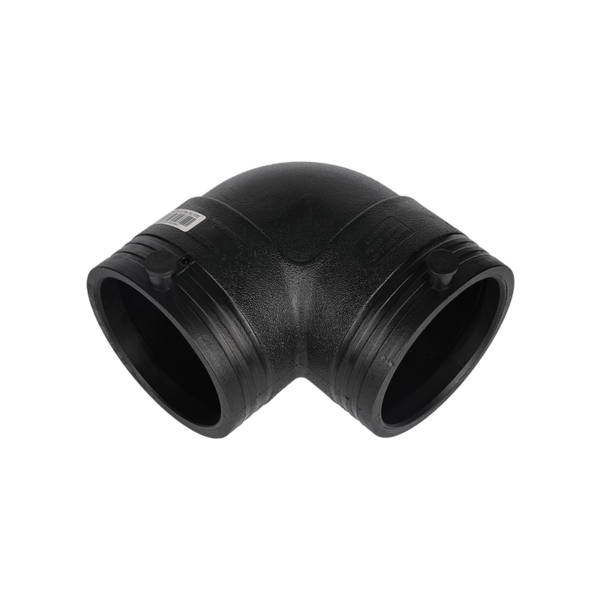

HDPE electrofusion 90°elbow

HDPE 90°elbow electrofusion produced by injection mould and both side with equal size.Raw material PE100 grade balck high density polyethylene(HDPE). Water PN16 / Gas 10 Bar (Depending on PE pipe welded to and any local pipeline pressure regulations).
Electrofusion fittings enable utilities, designers and contractors to create fully welded pipe networks.
The production quality, reliability and flexibility of electrofusion fittings provides the certainty and peace of mind needed for polyethylene pipe jointing.

HDPE 90°ELBOW electrofusion from CHANGPU company can fully comply with ISO9001 quality management system approvals. GB/T13663.3-2018

18942 Items sold in last 3 months

Name	HDPE 90°ELBOW electrofusion
Size	32-630mm
Pressure	SDR11(PN16),SDR17(PN10)
Material	PE100
Package	Carton
Color	BLACK
Technics	Mould injection
Loading port	Ningbo or Shanghai port
Place of origin	Hangzhou

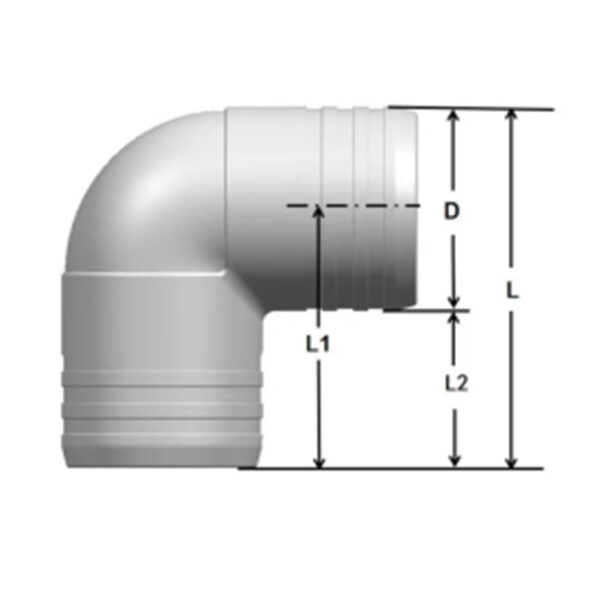

SIZE（MM）	D（MM）	L1（MM）	L2（MM）	L（MM）	SDR11	SDR17
32	45	60	40	85	√
40	52	65	40	90	√
50	62	80	49	111	√
63	77	95	58	135	√
75	90	100	55	145	√
90	107	105	52	159	√
110	135	115	48	183	√
125	150	140	65	215	√
140	165	155	75	240	√
160	190	160	65	255	√
200	237	195	75	315	√
225	267	210	78	345	√
250	297	230	83	380	√
315	373	285	102	475	√
355	422	320	110	528	√
400	473	340	126	584	√
500	590	450	110	690	√
630	742	500	140	875	√
315	352	280	106	458		√
355	397	315	118	515		√
400	447	350	120	568		√
500	563	400	130	675		√
630	700	500	150	855		√
