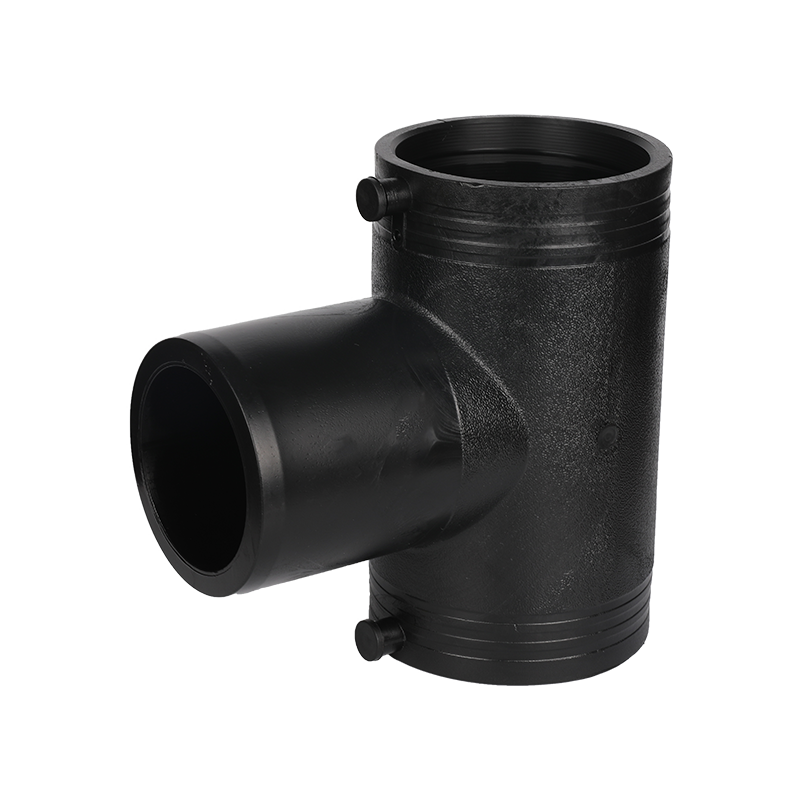

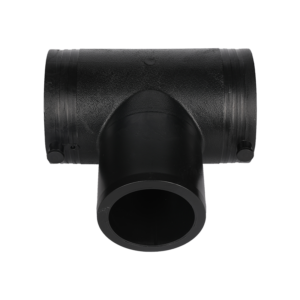

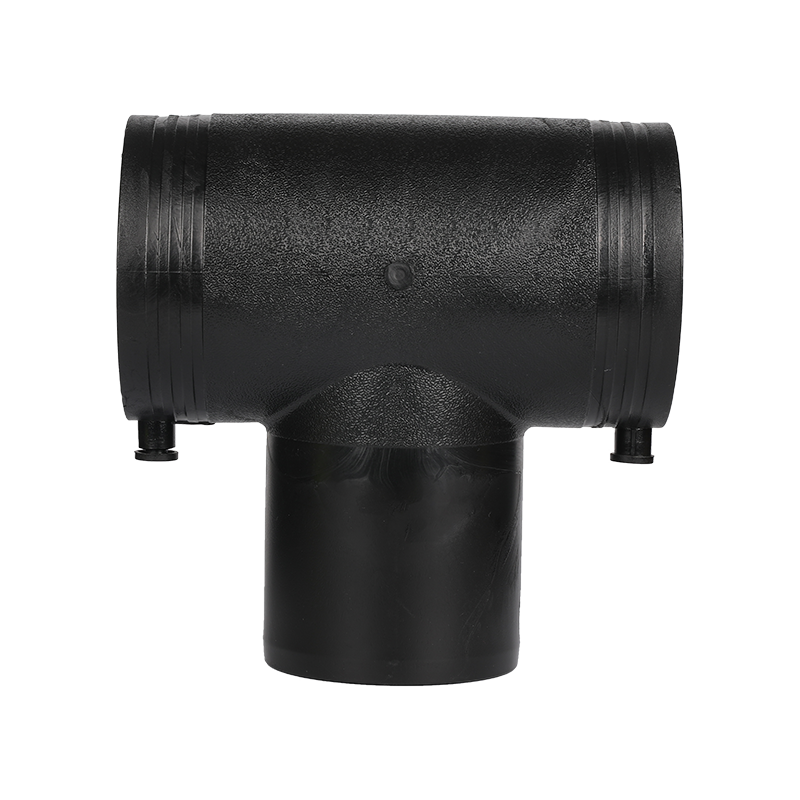

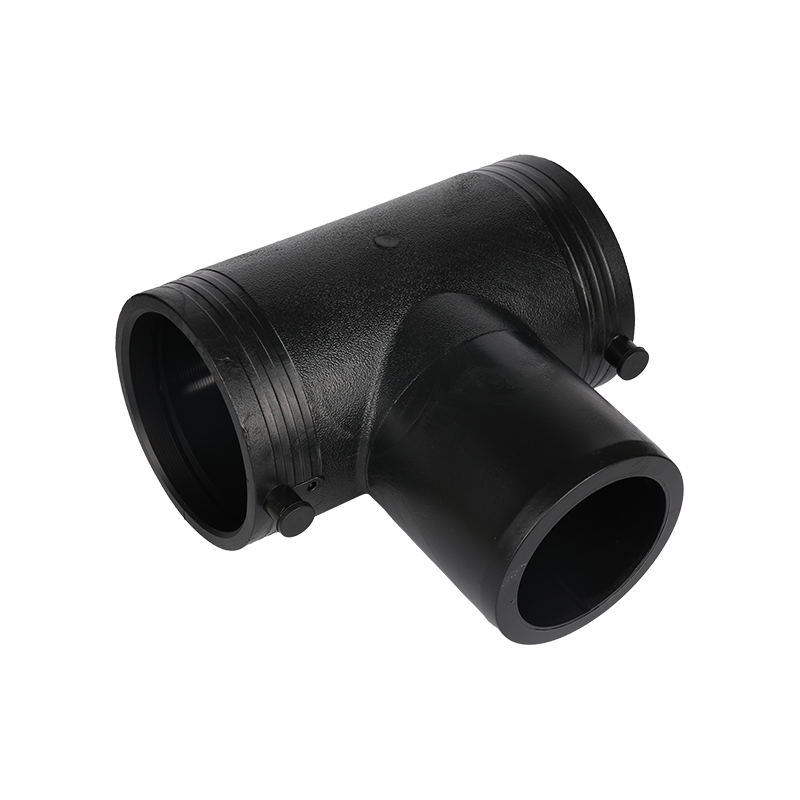

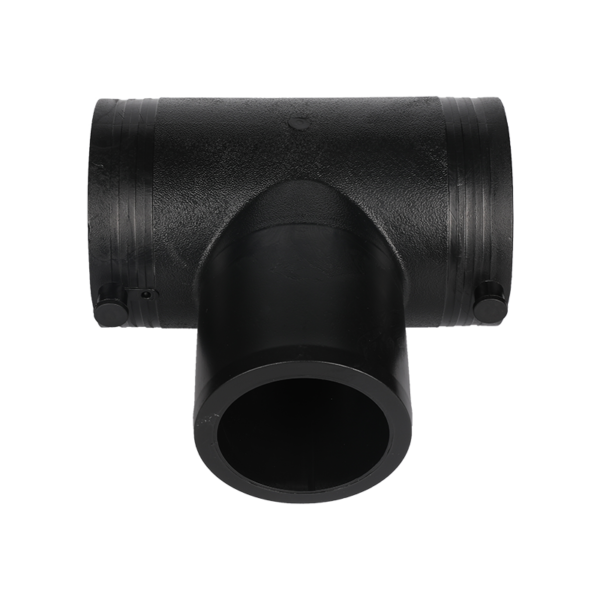

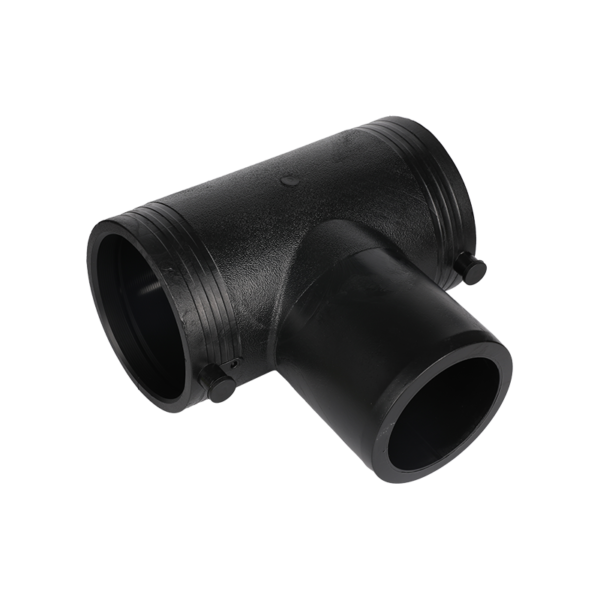

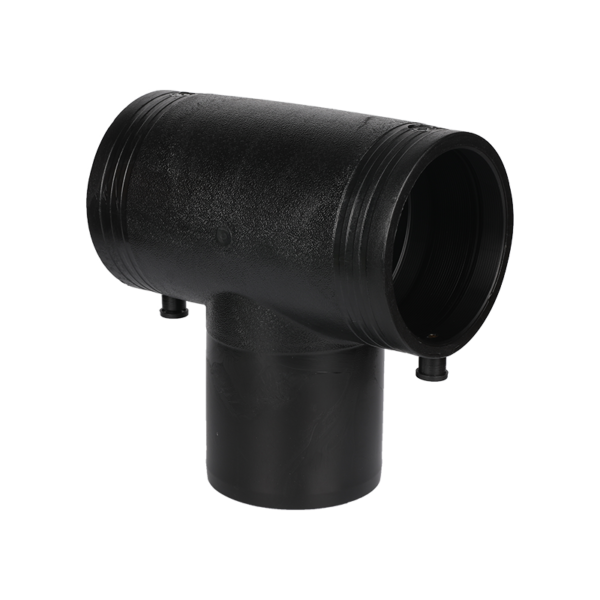

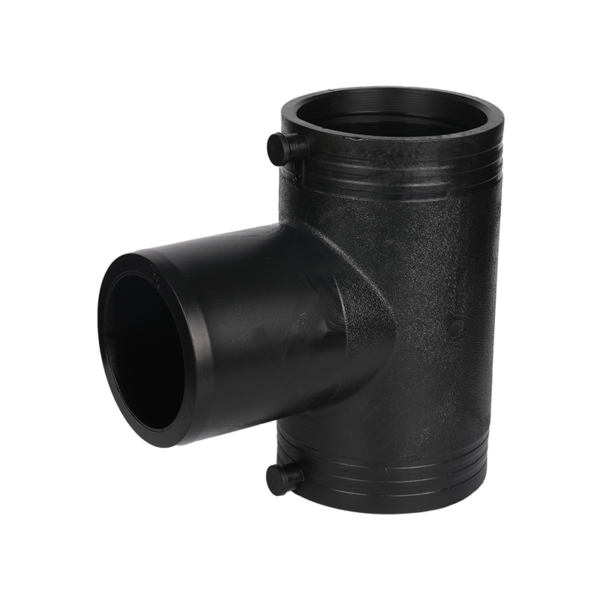

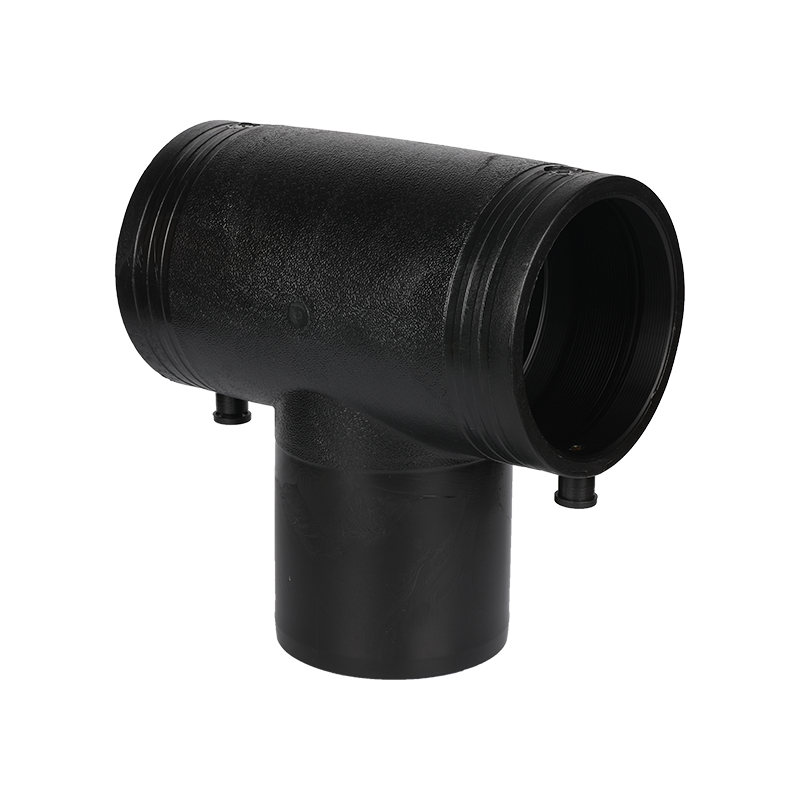

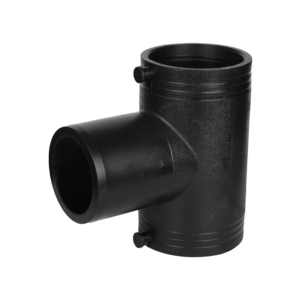

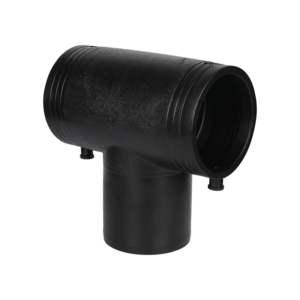

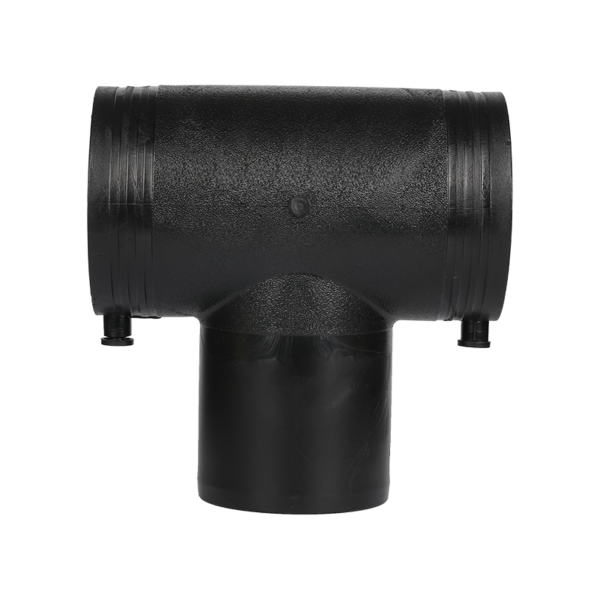

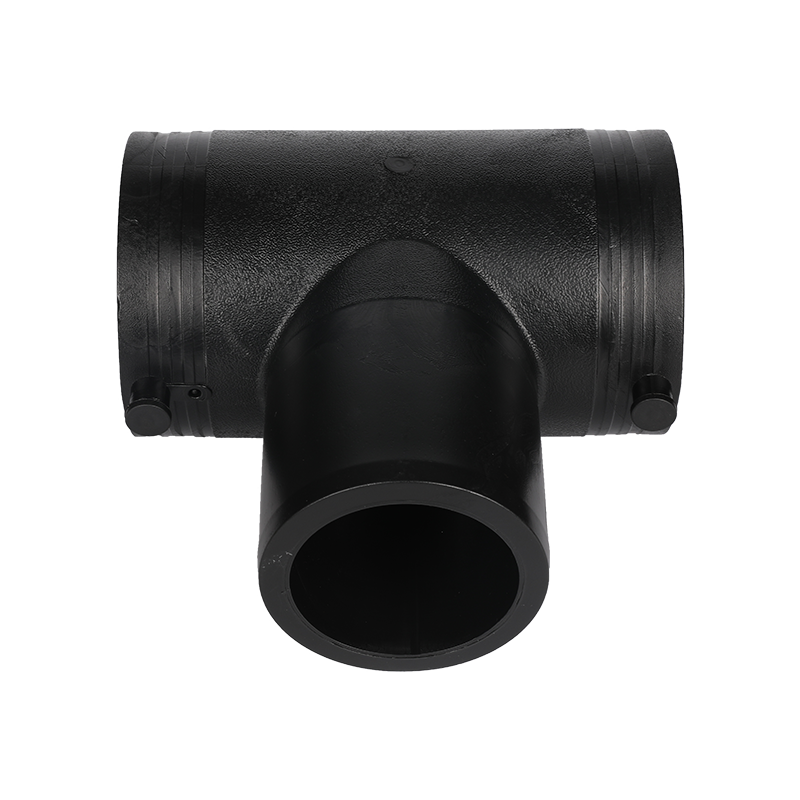

HDPE electrofusion reducing tee

HDPE tee redcuing electrofusion produced by injection mould and both side with equal size.Raw material PE100 grade balck high density polyethylene(HDPE). Water PN16 / Gas 10 Bar (Depending on PE pipe welded to and any local pipeline pressure regulations).
Electrofusion fittings enable utilities, designers and contractors to create fully welded pipe networks.
The production quality, reliability and flexibility of electrofusion fittings provides the certainty and peace of mind needed for polyethylene pipe jointing.

HDPE tee redcuing electrofusion from CHANGPU company can fully comply with ISO9001 quality management system approvals. GB/T13663.3-2018

14279 Items sold in last 3 months

Name	HDPE tee redcuing electrofusion
Size	3225-630315mm
Pressure	SDR11(PN16),SDR17(PN10)
Material	PE100
Package	Carton
Color	BLACK
Technics	Mould injection
Loading port	Ningbo or Shanghai port
Place of origin	Hangzhou

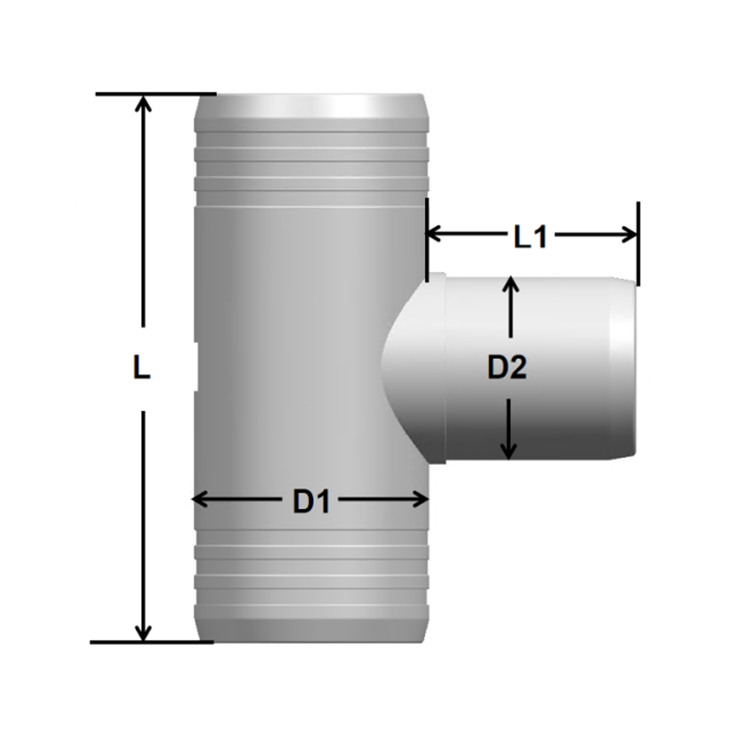

SIZE（MM）	D1（MM）	D2（MM）	L1（MM）	L（MM）	SDR11	SDR17
32*25	44	25.2	45	118	√
50*25	62	25.2	42	149	√
50*32	62	32.2	59	149	√
50*40	62	40.2	60	145	√
63*32	77	32.2	59	165	√
63*40	77	40.2	70	165	√
63*50	77	50.3	70	165	√
75*32	91	32.2	58	176	√
75*40	91	40.2	58	176	√
75*50	90	50.3	75	180	√
75*63	90	63.3	70	180	√
90*50	107	50.3	75	200	√
90*63	107	63.3	75	200	√
90*75	107	75.3	80	200	√
110*50	135	50.3	80	205	√
110*63	135	63.3	80	205	√
110*75	135	75.3	80	205	√
110*90	135	90.3	85	205	√
125*75	148	75.5	75	247	√
125*90	148	90.5	75	247	√
125*110	150	110.5	85	250	√
140*110	165	110.5	85	280	√
160*50	190	50.3	80	255	√
160*63	190	63.3	80	255	√
160*75	190	75.3	80	255	√
160*90	190	90.3	105	255	√
160*110	190	110.3	105	255	√
160*125	237	50.3	80	280	√
200*50	237	50.3	80	280	√
200*63	237	63.3	80	280	√
200*75	237	75.3	80	280	√
200*90	237	90.3	80	280	√
200*110	237	110.3	105	280	√
200*125	237	125.5	115	350	√
200*160	237	160.3	120	355	√
225*110	267	110.3	105	335	√
225*160	267	160.3	115	335	√
250*75	297	75.3	80	300	√
250*90	297	90.3	85	300	√
250*110	297	110.3	105	300	√
250*125	297	125.5	115	370	√
250*160	297	160.3	120	370	√
250*200	297	200.3	130	420	√
315*110	373	110.3	110	410	√
315*125	373	125.5	95	410	√
315*160	373	160.3	130	410	√
315*200	373	200.3	130	410	√
315*250	373	250.3	150	410	√
355*110	422	110	105	460	√
355*160	422	160	125	460	√
355*200	422	200	125	460	√
355*250	422	250	140	460	√
355*315	422	315	140	460	√
400*110	473	110	105	490	√
400*160	473	160	130	490	√
400*200	473	200	130	490	√
400*250	473	250	140	490	√
400*315	473	315	145	615	√
500*110	590	110	115	545	√
500*160	590	160	130	545	√
500*200	590	200	130	545	√
500*250	590	250	145	545	√
500*315	590	315	145	730	√
500*400	590	400	160	730	√
630*110	740	110	115	700	√
630*160	740	160	115	700	√
630*200	740	200	120	700	√
630*250	740	250	135	700	√
630*315	740	315	150	700	√
