Description
Main features:

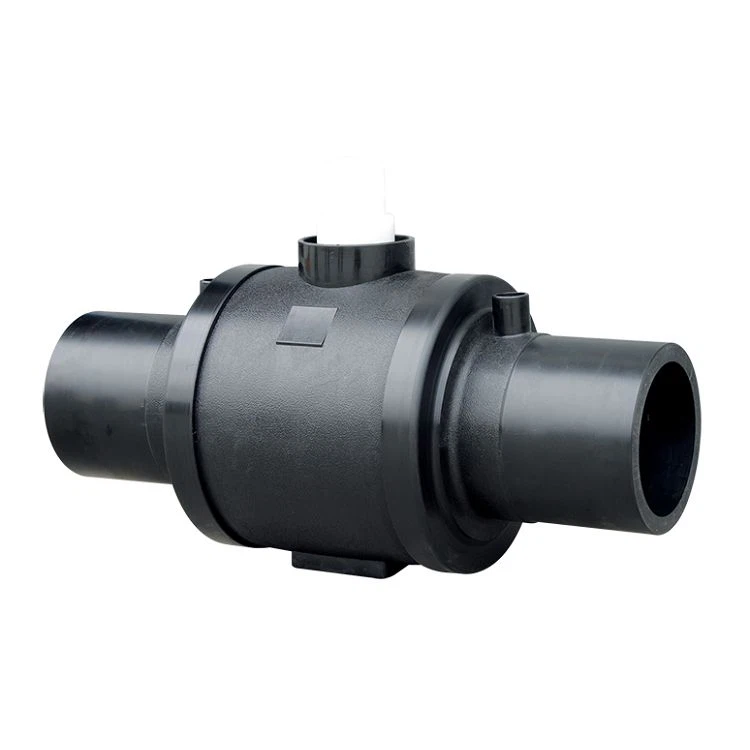

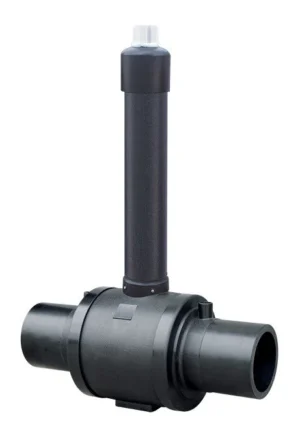

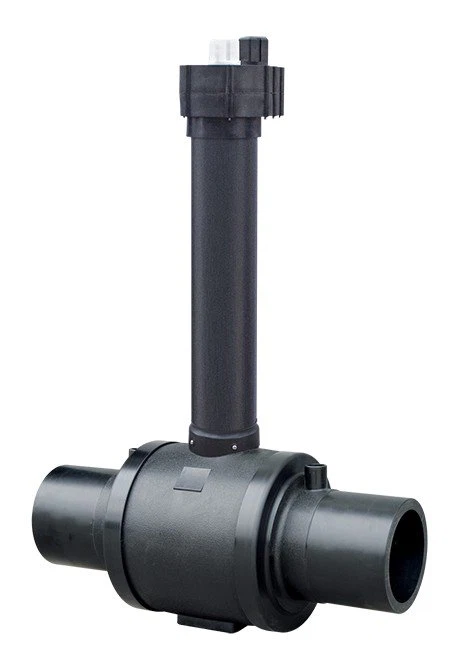

Injection moulded, long spigot end, black HDPE100 material, quarter turn valve (ball), SDR availability 11/17, sizes range from dn63mm to dn315mm, Extended stem for top-opening device with gear assist is alternative.
Suitable for:
Piping systems for water distribution (UNI EN 12201 – ISO 4427) up to PN16 bar; Piping systems for the distribution of fuel gas (UNI EN 1555 – ISO 4437).
Jointing method: Heating elements, electrofusion.

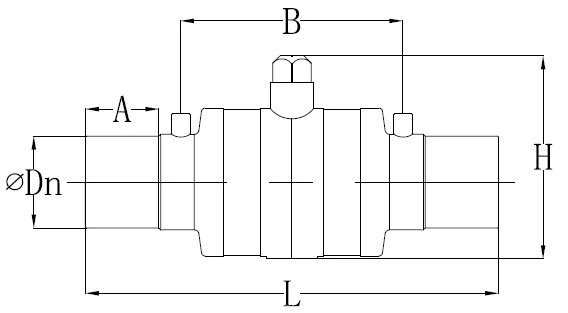

| Dn /MM | KG/PC | SIZE/MM | |||
| SDR11 | A | B | L | H | |
| 63 | 3.000 | 125 | 200 | 500 | 180 |
| 90 | 10.000 | 150 | 320 | 645 | 350 |
| 110 | 11.500 | 160 | 320 | 700 | 350 |
| 160 | 20.000 | 170 | 360 | 770 | 450 |
| 200 | 33.000 | 190 | 400 | 840 | 500 |
| 250 | 49.000 | 200 | 420 | 860 | 500 |
| 315 | 75.000 | 180 | 530 | 980 | 650 |
