HDPE Electrofusion Coupler OEM And ODM Manufacturer

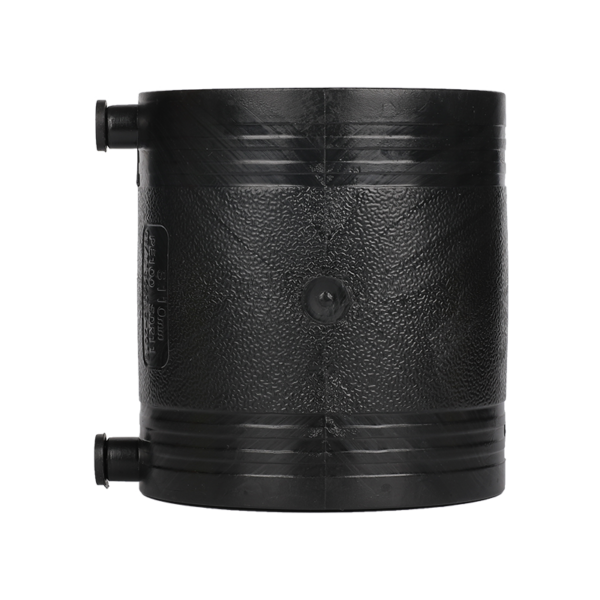

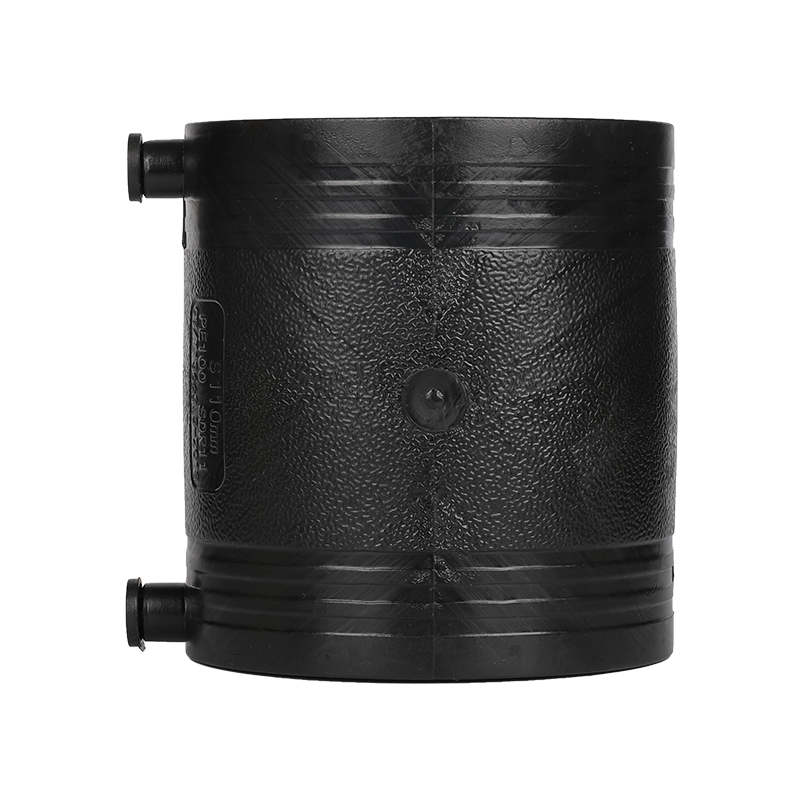

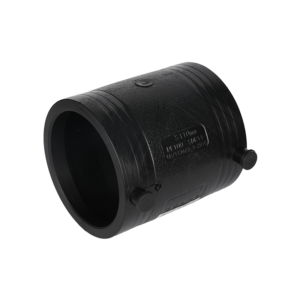

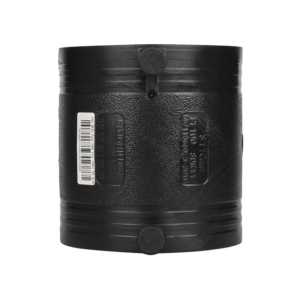

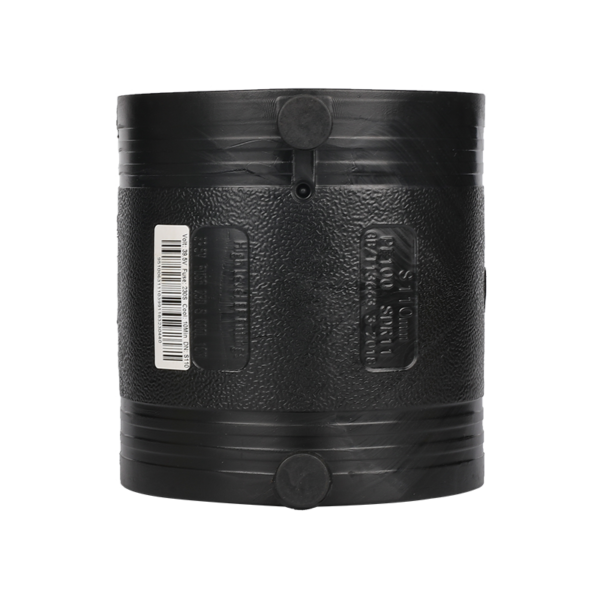

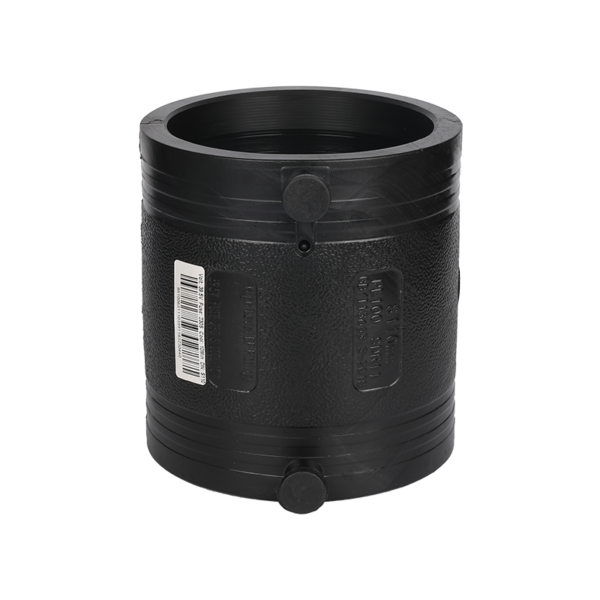

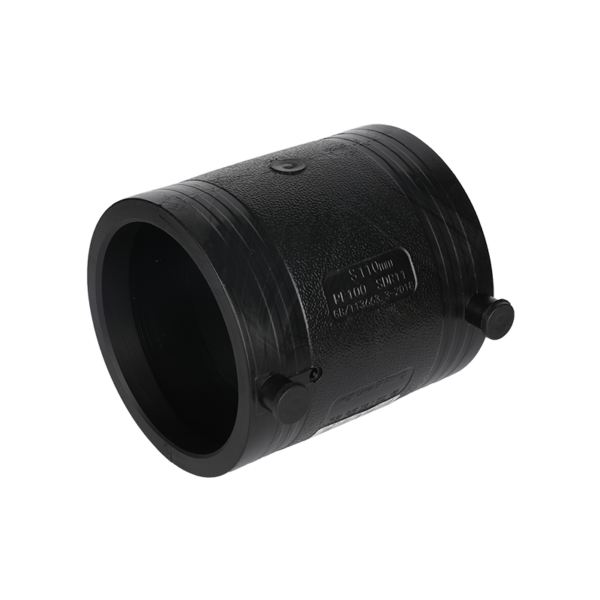

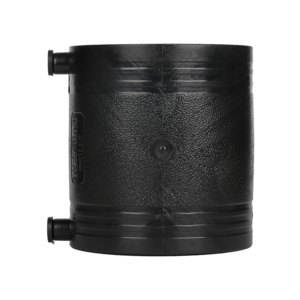

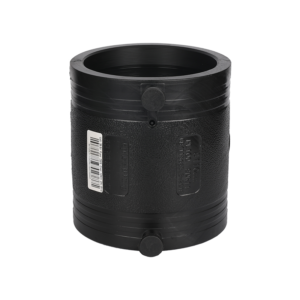

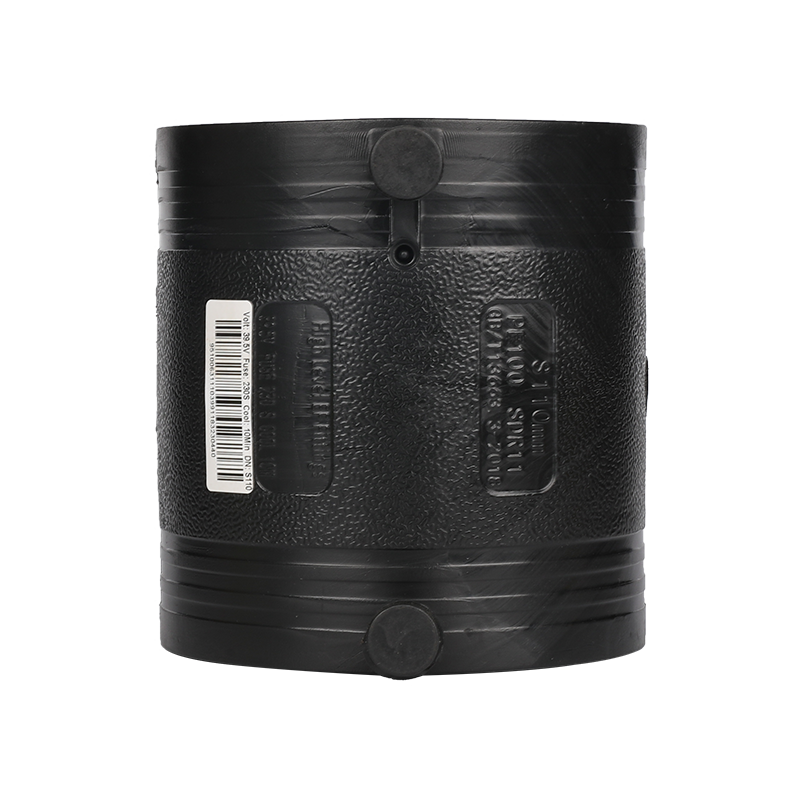

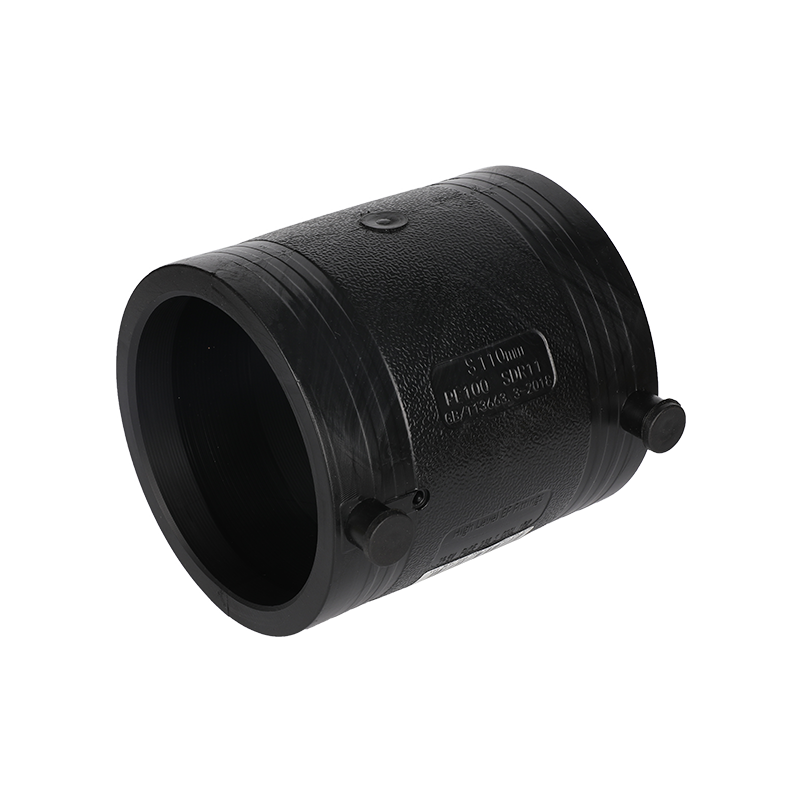

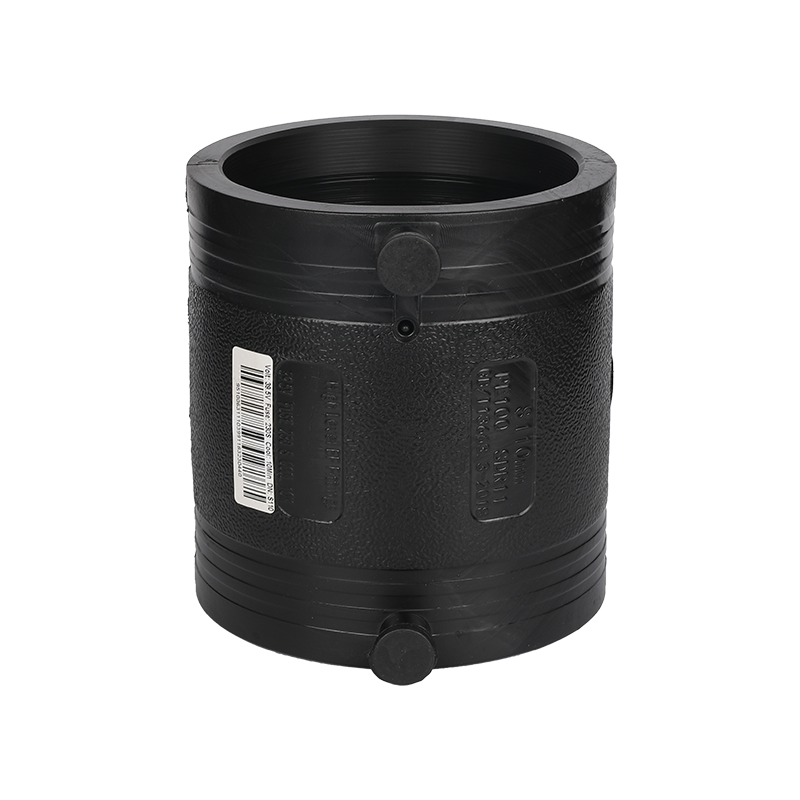

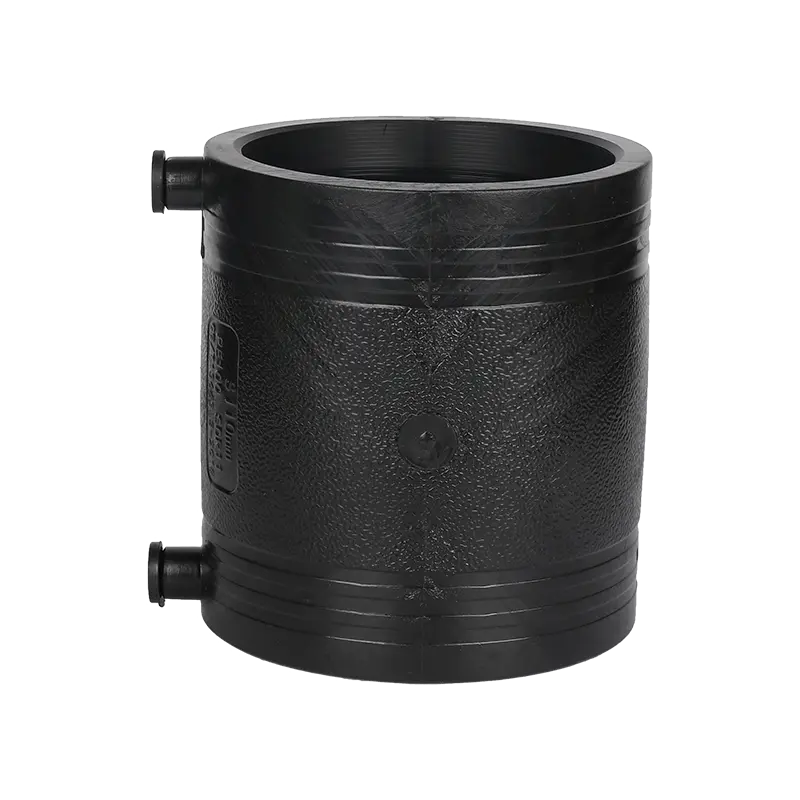

HDPE electrofusion coupler

HDPE 45°ELBOW electrofusion produced by injection mould and both side with equal size.Raw material PE100 grade balck high density polyethylene(HDPE). Water PN16 / Gas 10 Bar (Depending on PE pipe welded to and any local pipeline pressure regulations).
Electrofusion fittings enable utilities, designers and contractors to create fully welded pipe networks.
The production quality, reliability and flexibility of electrofusion fittings provides the certainty and peace of mind needed for polyethylene pipe jointing.HDPE 45°ELBOW electrofusion from CHANGPU company can fully comply with ISO9001 quality management system approvals. GB/T13663.3-2018

16853 Items sold in last 3 months

Name	HDPE coupler electrofusion
Size	25-1200mm
Pressure	SDR11(PN16),SDR17(PN10)
Material	PE100
Package	Carton
Color	BLACK
Technics	Mould injection
Loading port	Ningbo or Shanghai port
Place of origin	Hangzhou

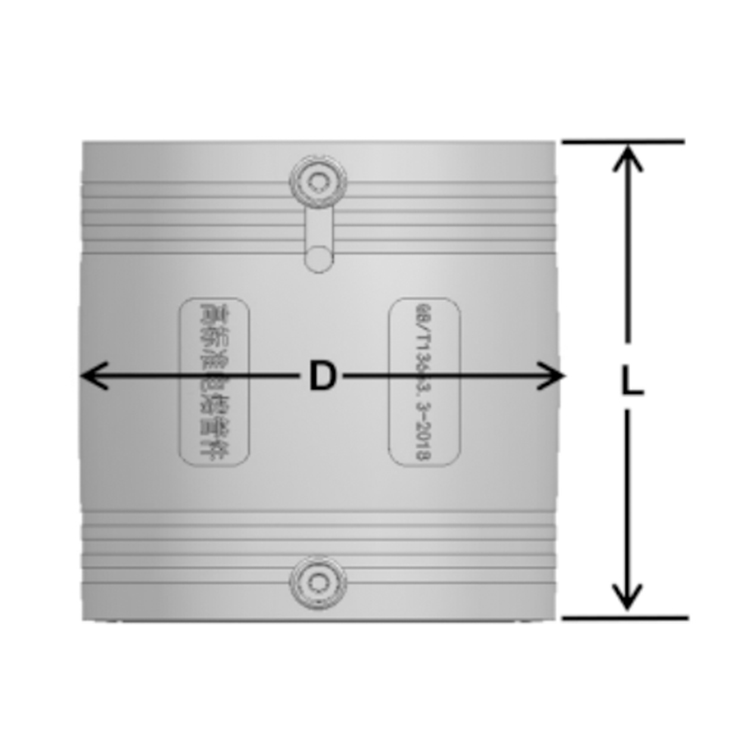

DN（MM）	D（MM）	L（MM）	SDR11	SDR17
25	35	80	√
32	42	87	√
40	52	92	√
50	62	105	√
63	77	110	√
75	90	118	√
90	107	127	√
110	135	142	√
125	150	150	√
140	165	165	√
160	190	167	√
180	215	190	√
200	237	190	√
225	267	205	√
250	297	210	√
280	320	220	√
315	373	250	√
355	422	250	√
400	473	275	√
450	530	290	√
500	590	300	√
630	742	360	√
315	352	250		√
355	397	250		√
400	447	285		√
450	500	290		√
500	563	300		√
560	620	330		√
630	700	360		√
710	785	415		√
800	898	450		√
900	1004	465		√
1000	1100	550		√
1200	1380	580		√
