HDPE Electrofusion Equal Tee Manufacturer And OEM ODM Services

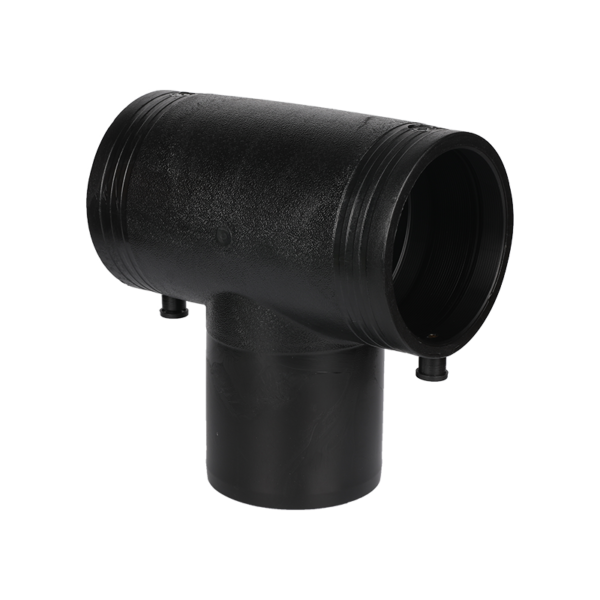

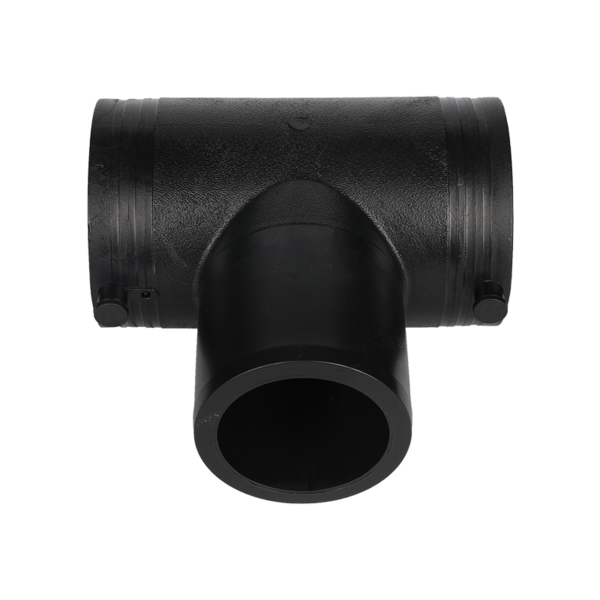

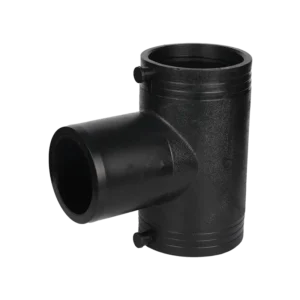

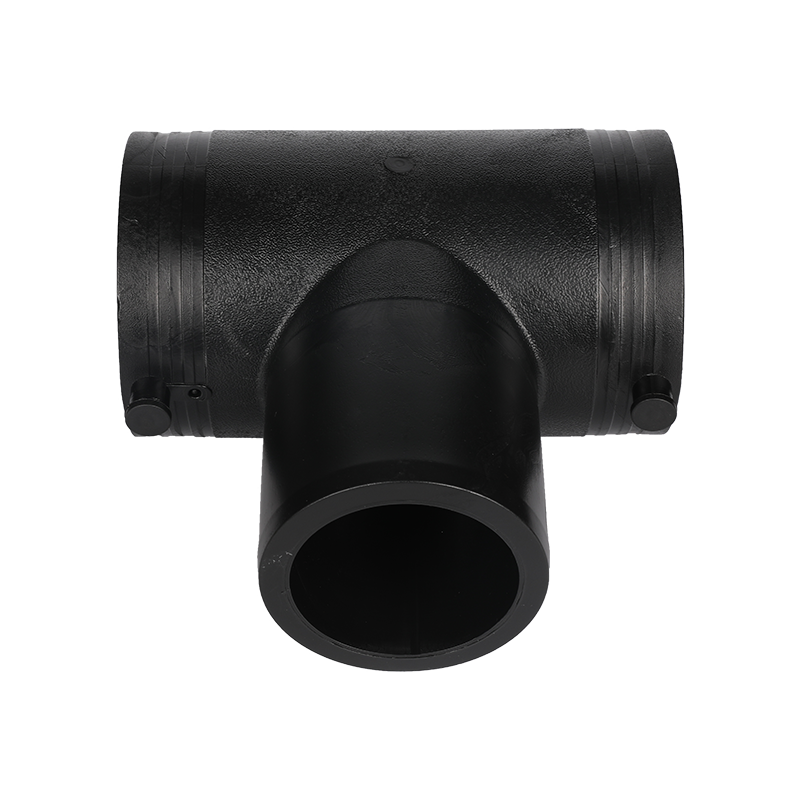

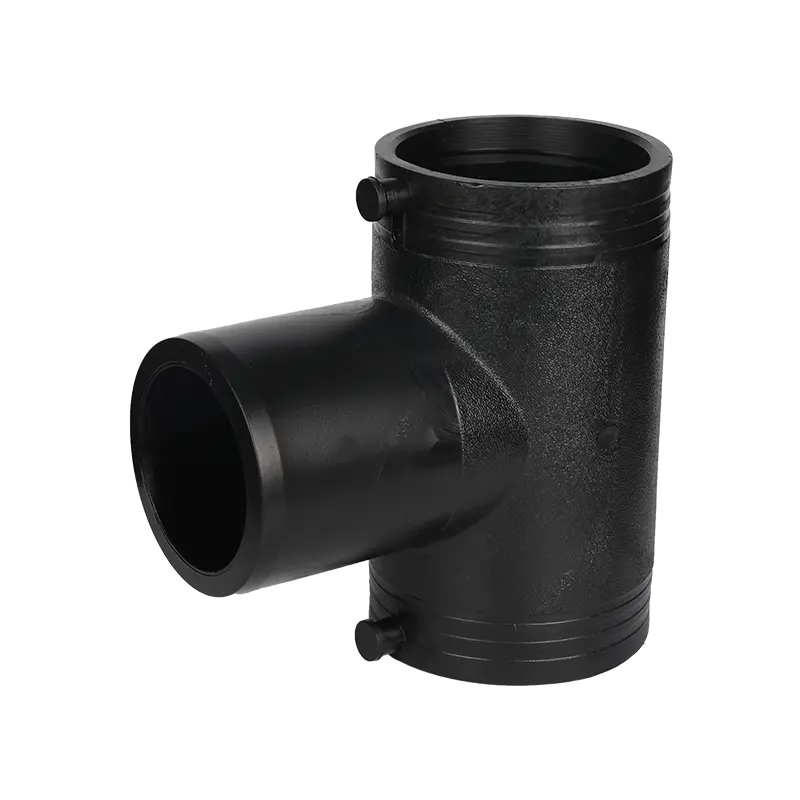

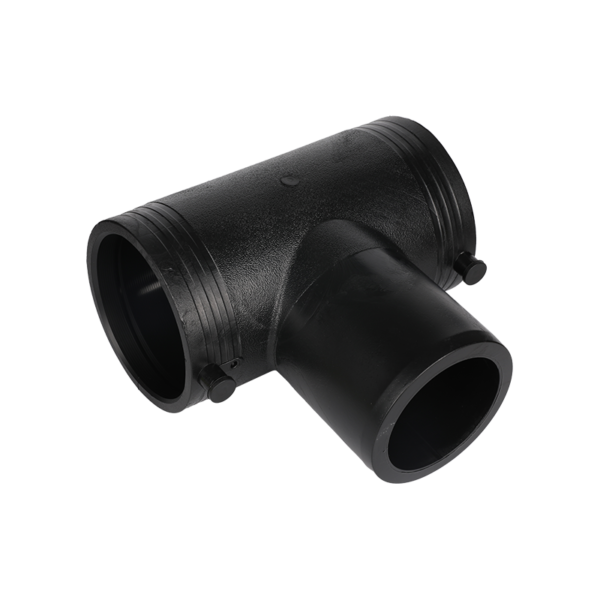

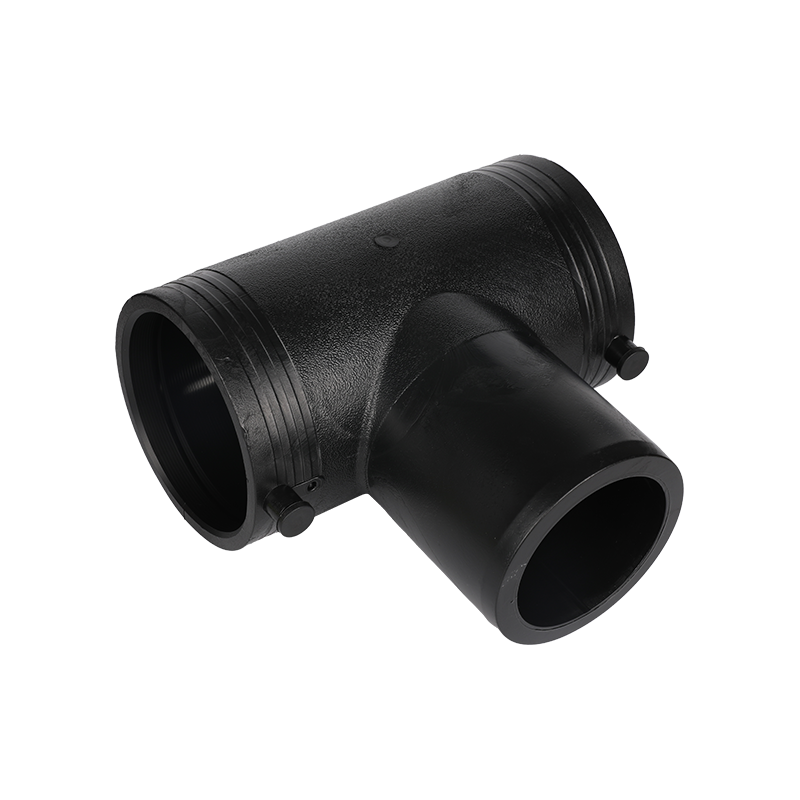

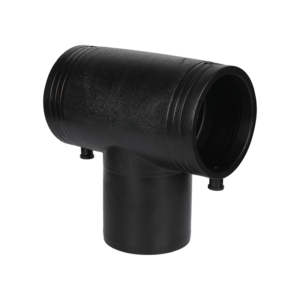

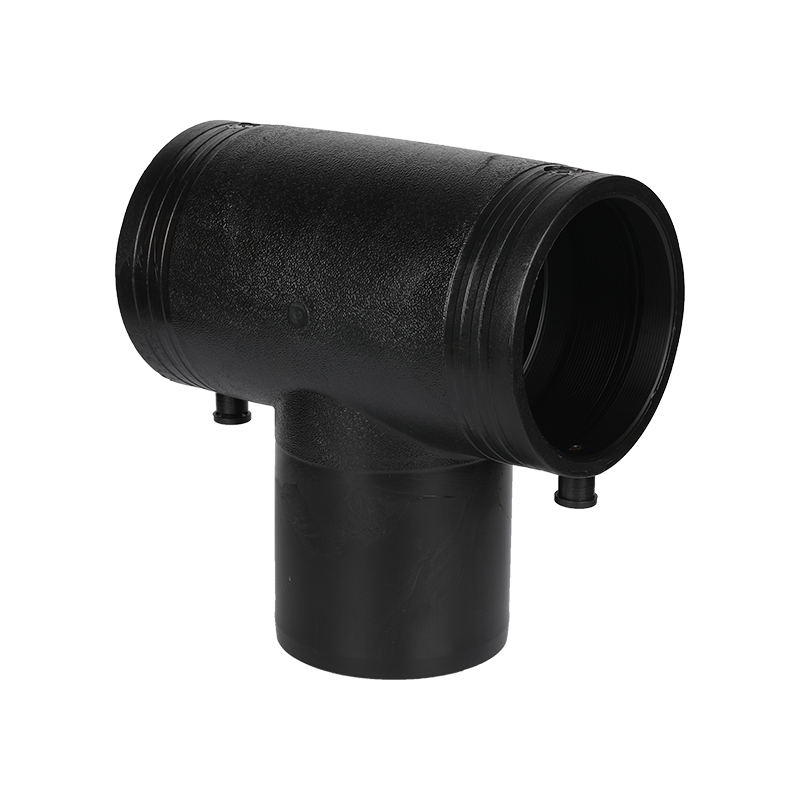

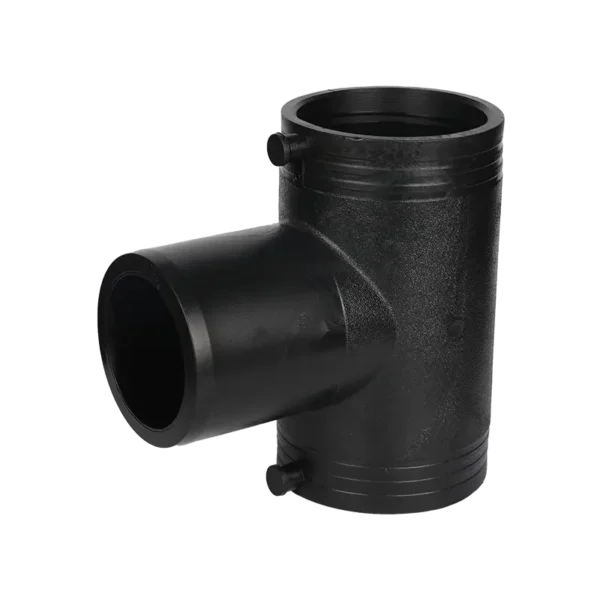

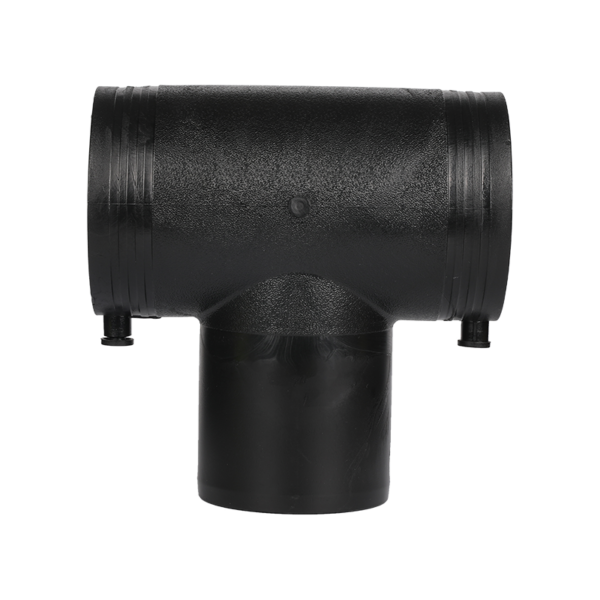

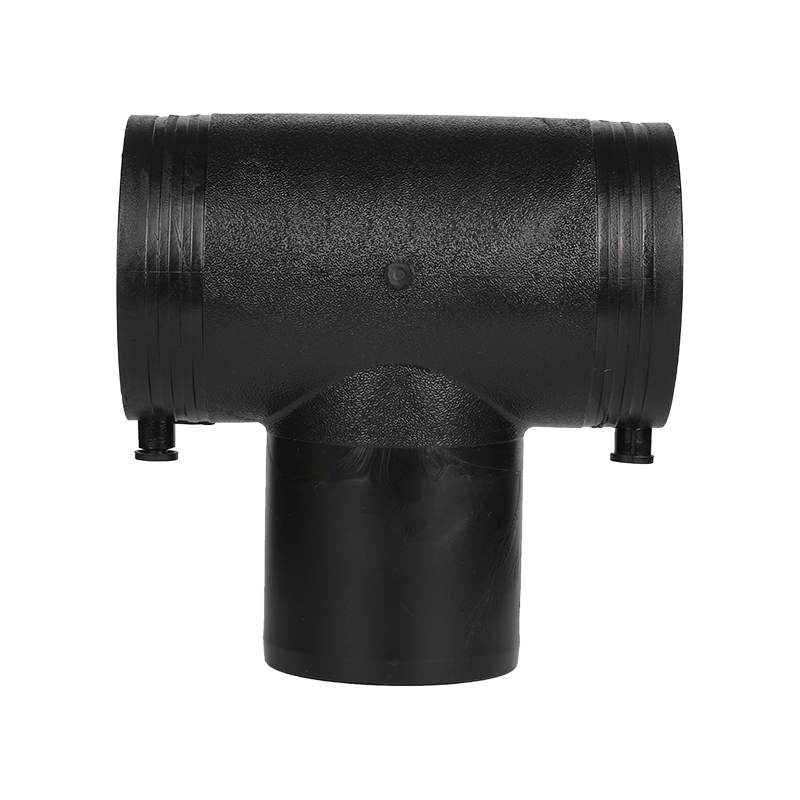

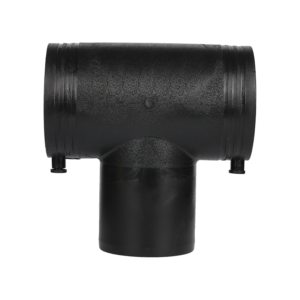

HDPE electrofusion equal tee

HDPE tee equal electrofusion produced by injection mould and both side with equal size.Raw material PE100 grade balck high density polyethylene(HDPE). Water PN16 / Gas 10 Bar (Depending on PE pipe welded to and any local pipeline pressure regulations).
Electrofusion fittings enable utilities, designers and contractors to create fully welded pipe networks.
The production quality, reliability and flexibility of electrofusion fittings provides the certainty and peace of mind needed for polyethylene pipe jointing.

HDPE tee equal electrofusion from CHANGPU company can fully comply with ISO9001 quality management system approvals. GB/T13663.3-2018

19045 Items sold in last 3 months

Name	HDPE tee equal electrofusion
Size	32-500mm
Pressure	SDR11(PN16),SDR17(PN10)
Material	PE100
Package	Carton
Color	BLACK
Technics	Mould injection
Loading port	Ningbo or Shanghai port
Place of origin	Hangzhou

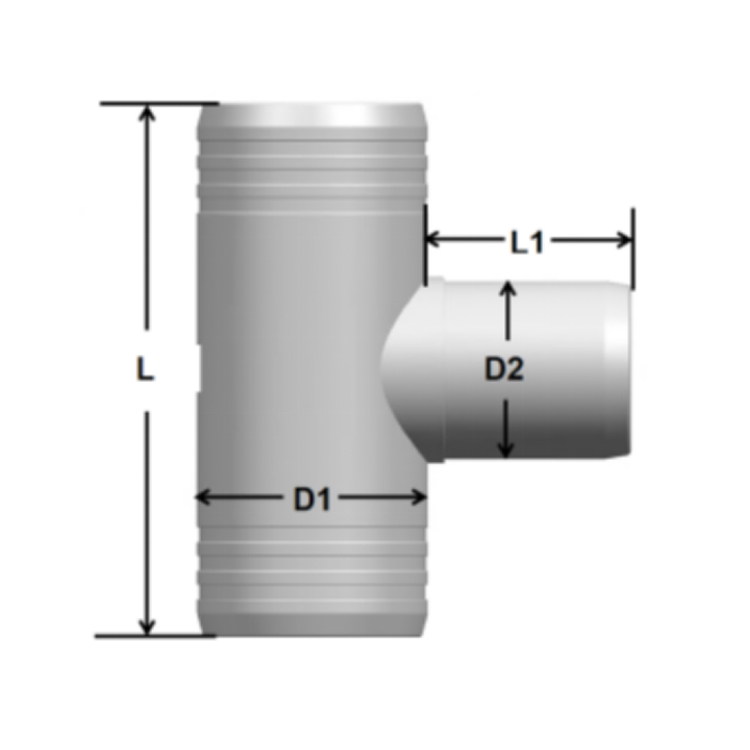

SIZE（MM）	D1（MM）	D2（MM）	L1（MM）	L（MM）	SDR11	SDR17
32	42	32	47	110	√
40	52	40	45	120	√
50	62	50.3	75	145	√
63	77	63.3	75	165	√
75	90	75.3	75	180	√
90	107	90.3	90	205	√
110	135	110.3	103	230	√
125	150	125.3	110	250	√
140	165	140	100	280	√
160	190	160.3	120	300	√
200	237	200.3	125	355	√
225	267	225.3	140	385	√
250	297	250.3	157	410	√
315	373	315.3	152	505	√
355	422	355	150	565	√
400	473	400	160	615	√
500	590	500	175	730	√
